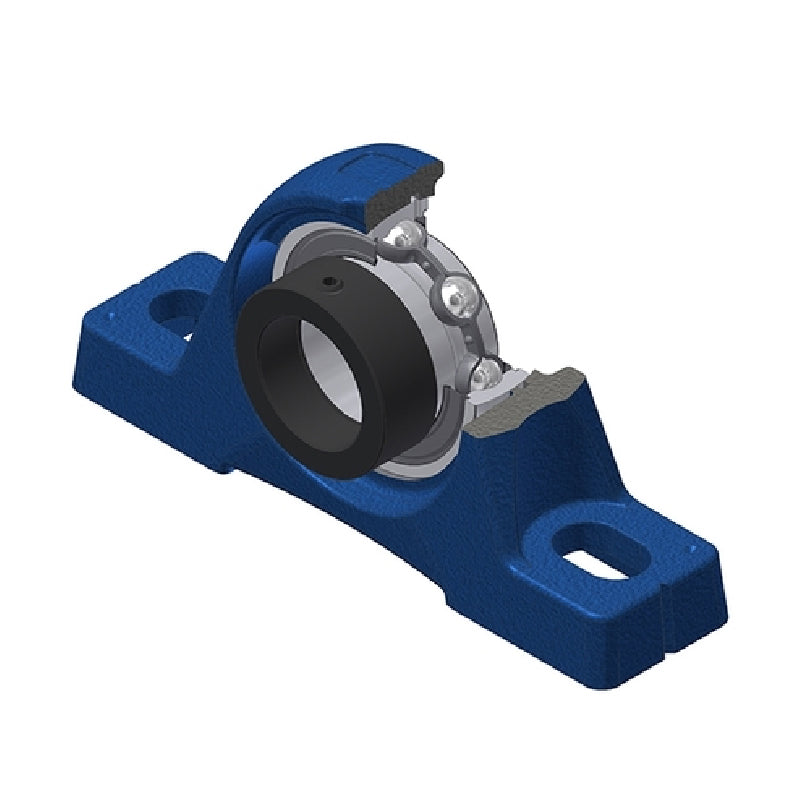

• SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESPE212-SNR

SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
$86.87 ex VAT
$86.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $58.19
4+ $54.92
9+ $54.27
19+ $53.61
49+ $52.96
99+ $52.31
499+ $49.04
999+ $48.38
1999+ $47.73
2999+ $47.08
4999+ $45.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESPE
Bolt Hole Centres:
190mm
Technical
--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 33.4mm
d1 82mm
H 69.9mm
H1 25mm
H2 140mm
J 190mm
L 240mm
L1 71mm
N 18mm
N1 28mm
S 12mm
G R1/8"
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.5 kg
