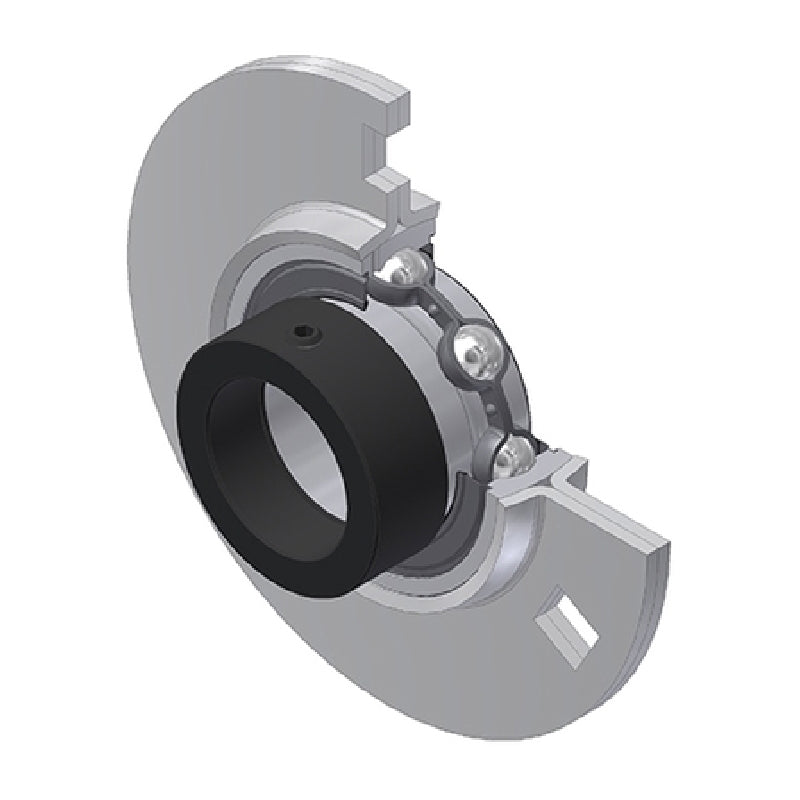

• SNR ESPF210 Round 4 Bolt Pressed Steel Bearing Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESPF210-SNR

SNR ESPF210 Round 4 Bolt Pressed Steel Bearing Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPF210 Round 4 Bolt Pressed Steel Bearing Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
$51.23 ex VAT
$51.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.31
4+ $32.39
9+ $32.00
19+ $31.62
49+ $31.23
99+ $30.84
499+ $28.92
999+ $28.53
1999+ $28.15
2999+ $27.76
4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESPF
Pitch Circle Diameter:
127mm
Technical

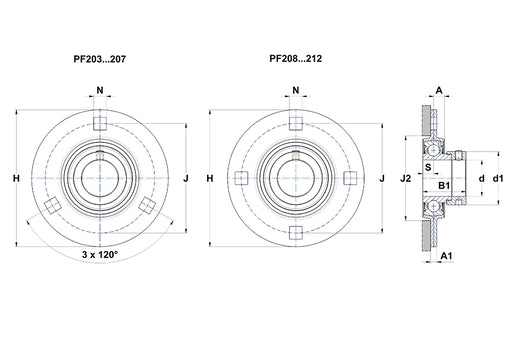

--- Dimensions
Shaft diameter 50mm
A 10.5mm
A1 8mm
A2 32.7mm
B 30.2mm
B1 43.7mm
d1 67.2mm
H 155.6mm
J 127mm
N 13.5mm
S 11mm
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.68 kg
