• SNR ESPFL202 Metric Two Bolt Oval Pressed Steel Bearing Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESPFL202-SNR

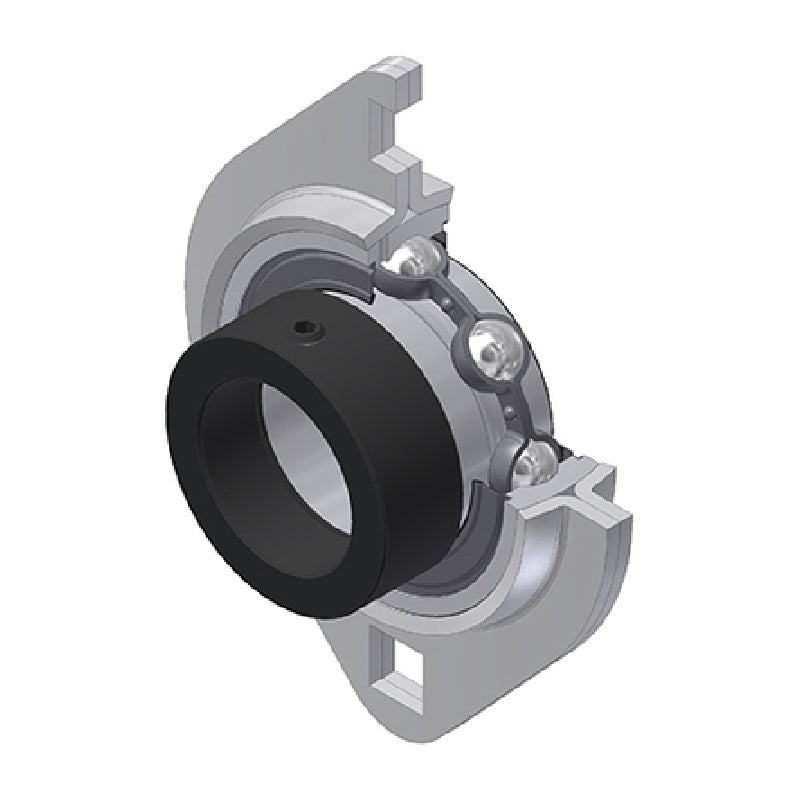

SNR ESPFL202 Metric Two Bolt Oval Pressed Steel Bearing Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPFL202 Metric Two Bolt Oval Pressed Steel Bearing Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days
$22.92 ex VAT
$22.92 ex VAT
Sale Sold out

In stock

Price Break
3+ $15.35
4+ $14.49
9+ $14.32
19+ $14.14
49+ $13.97
99+ $13.80
499+ $12.94
999+ $12.76
1999+ $12.59
2999+ $12.42
4999+ $12.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
15mm
Style:
ESPFL
Bolt Hole Centres:
4mm
Technical
--- Dimensions
Shaft diameter d 15mm
A 6.7mm
A1 4mm
A2 22.1mm
B 19.1mm
B1 28.6mm
d1 27.2mm
H 81mm
J 63.5mm
L 58.7mm
N 7.1mm
S 6.5mm
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.21 kg
