SKU: ESPFL205-14-SNR

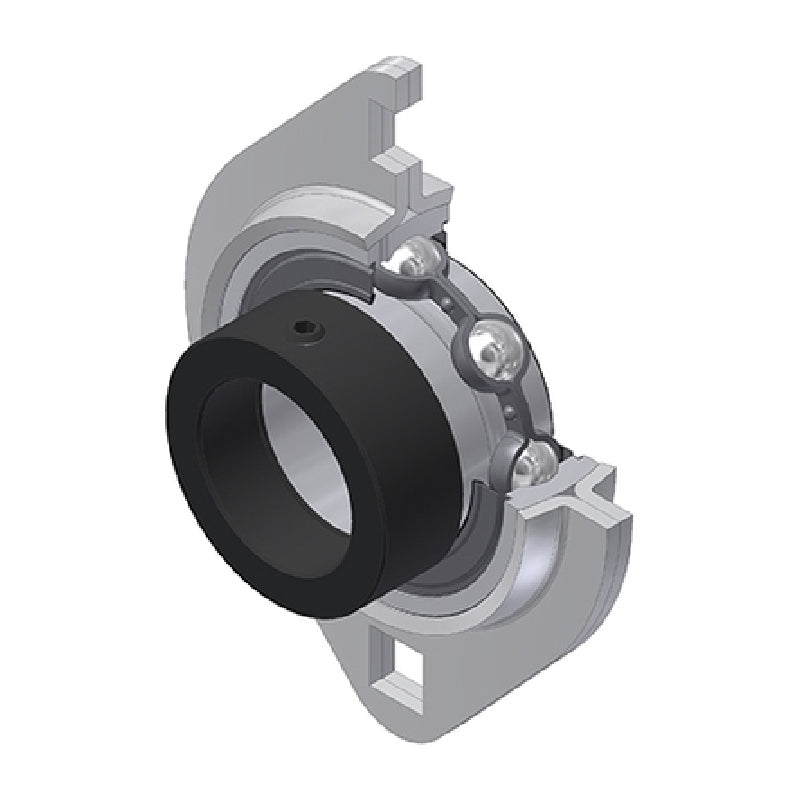

SNR ESPFL205-14 Imperial Two Bolt Oval Pressed Steel Bearing Housing with 7/8 inch Eccentric Collar Insert - Allow 2-3 Days
SNR ESPFL205-14 Imperial Two Bolt Oval Pressed Steel Bearing Housing with 7/8 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
$26.48
ex VAT
Regular price
Sale price
$26.48
ex VAT
In stock
Price Break
3+
$19.73
4+
$18.93
9+
$18.53
19+
$17.94
49+
$17.54
99+
$16.54
499+
$13.95
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- ESPFL
- Bolt Hole Centres:
- 4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 7/8 inch |
| A | 8.7mm |
| A1 | 4mm |
| A2 | 23.4mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| H | 95.2mm |
| J | 76.2mm |
| L | 71mm |
| N | 8.7mm |
| S | 7.5mm |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.29 kg |
