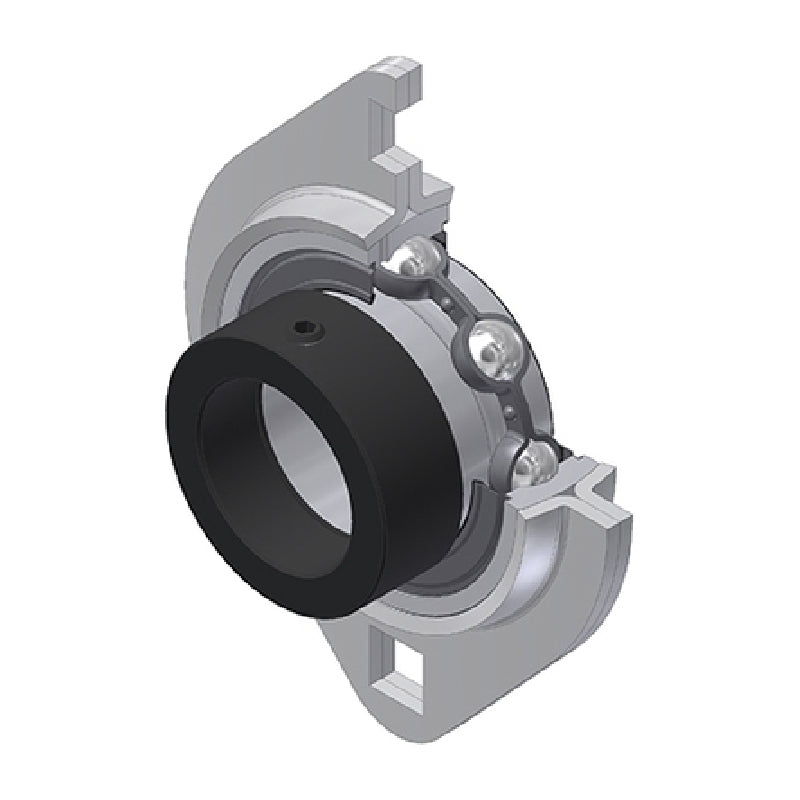

SNR ESPFL207 Metric Two Bolt Oval Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

Name: SNR ESPFL207 Metric Two Bolt Oval Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Brand: SNR
SKU: ESPFL207-SNR
Price: 37.00 USD
Availability: InStock

$37.00 ex VAT

Sale Sold out

In stock

Price Break

3+ $24.78

4+ $23.39

9+ $23.11

19+ $22.83

49+ $22.56

99+ $22.28

499+ $20.88

999+ $20.61

1999+ $20.33

2999+ $20.05

4999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 35mm
Style:: ESPFL
Bolt Hole Centres:: 5mm

Technical

---	Dimensions
Shaft diameter d	35mm
A	10.5mm
A1	5mm
A2	29.4mm
B	25.4mm
B1	38.9mm
d1	51.1mm
H	123mm
J	100mm
L	93.7mm
N	10.5mm
S	9.5mm
---	Load rating
Dynamic load C	25.7 kN
Static load C0	15.2 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	11.5 Nm
Mass	0.71 kg
