• SNR ESPFL208 Metric Two Bolt Oval Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESPFL208-SNR

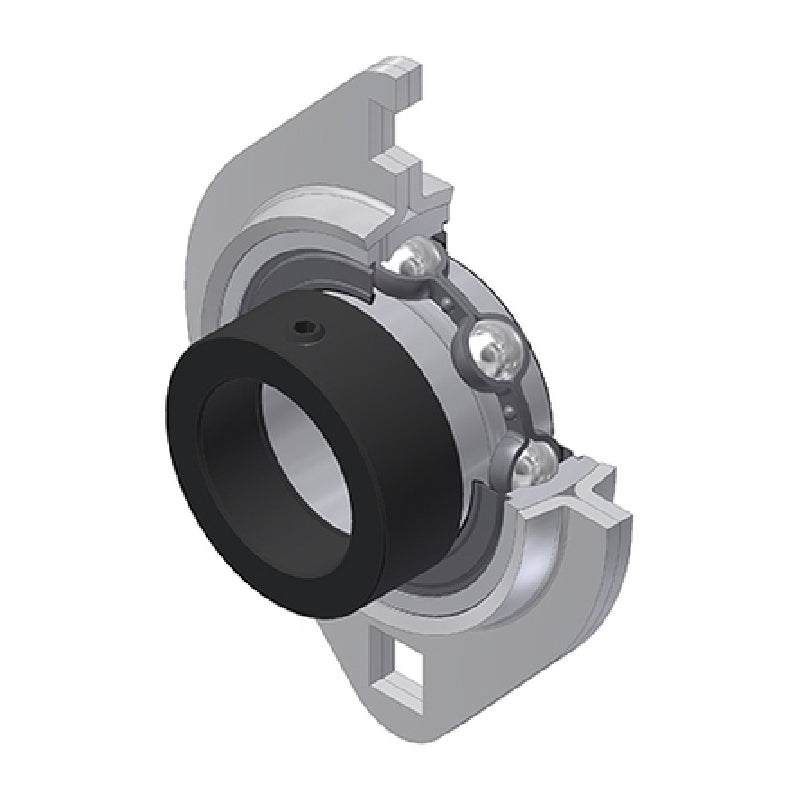

SNR ESPFL208 Metric Two Bolt Oval Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPFL208 Metric Two Bolt Oval Pressed Steel Bearing Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
$40.57 ex VAT
$40.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
4+ $25.64
9+ $25.34
19+ $25.03
49+ $24.73
99+ $24.42
499+ $22.90
999+ $22.59
1999+ $22.29
2999+ $21.98
4999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESPFL
Bolt Hole Centres:
7mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 11.5mm
A1 7mm
A2 32.7mm
B 30.2mm
B1 43.7mm
d1 58mm
H 151mm
J 119mm
L 100mm
N 13.5mm
S 11mm
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1 kg
