SKU: ESPFT207-SNR

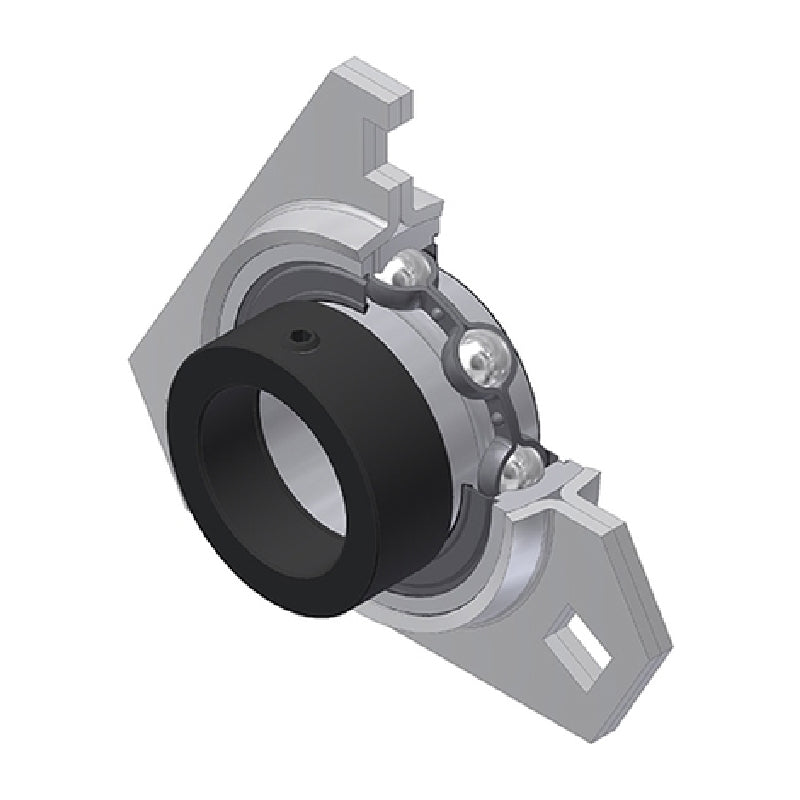

SNR ESPFT207 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESPFT207 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$41.18
ex VAT
Regular price
Sale price
$41.18
ex VAT
In stock
Price Break
3+
$30.68
4+
$29.44
9+
$28.82
19+
$27.89
49+
$27.27
99+
$25.72
499+
$21.69
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
ESPFT200 Series 3 Bolt Pressed Steel Triangular Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium-duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESPFT
- Bolt Hole Centres:
- 100mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 10.5mm |
| A1 | 5mm |
| A2 | 29.4mm |
| B | 25.4mm |
| B1 | 38.9mm |
| d1 | 51.1mm |
| H | 122.2mm |
| H1 | 44.2mm |
| J | 100mm |
| N | 10.5mm |
| S | 9.5mm |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 0.75 kg |
