SKU: ESPG208-SNR
SNR ESPG208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
SNR ESPG208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price
$73.54
ex VAT
Regular price
Sale price
$73.54
ex VAT
In stock
Price Break
3+
$54.79
4+
$52.57
9+
$51.47
19+
$49.81
49+
$48.70
99+
$45.93
499+
$38.74
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
ESPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESPG
- Bolt Hole Centres:
- 78mm
Technical
Technical

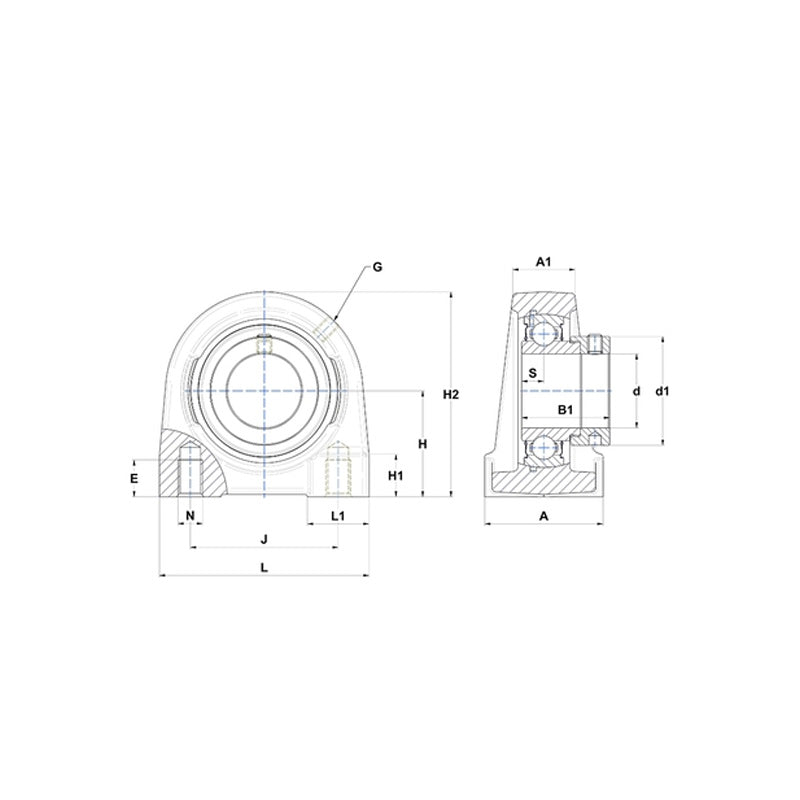

| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 54mm |
| A1 | 30mm |
| B | 30.2mm |
| d1 | 58mm |
| E | 22mm |
| H | 49.2mm |
| H1 | 20mm |
| H2 | 98mm |
| J | 78mm |
| L | 110mm |
| L1 | 35mm |
| N | M12 |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.85 kg |
