SKU: ESPLE205-SNR

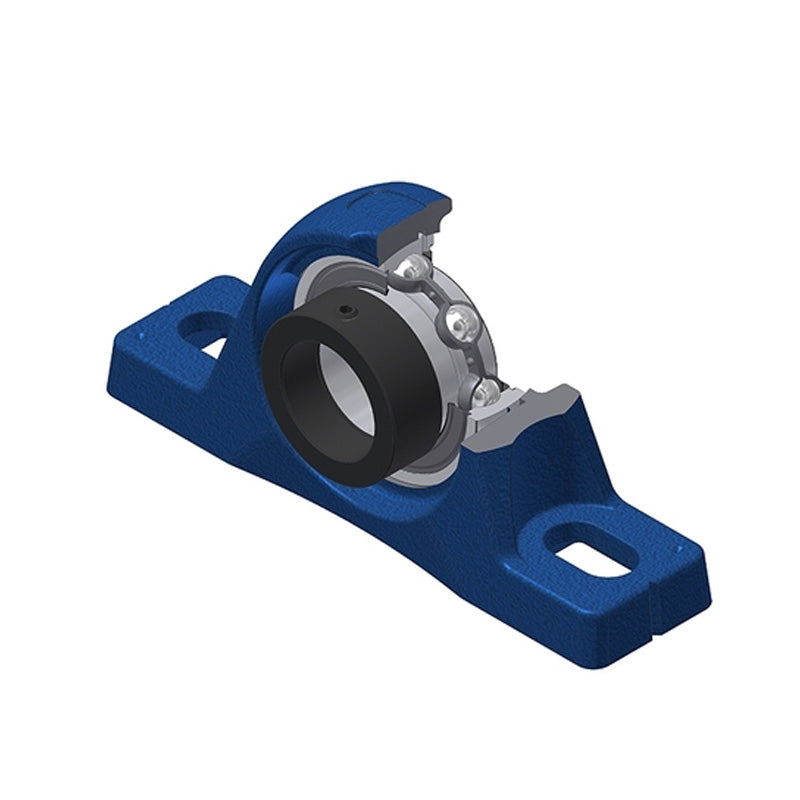

SNR ESPLE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPLE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$29.88
ex VAT
Regular price
Sale price
$29.88
ex VAT
In stock
Price Break
3+
$20.02
4+
$18.89
9+
$18.67
19+
$18.44
49+
$18.22
99+
$17.99
499+
$16.87
999+
$16.64
1999+
$16.42
2999+
$16.19
4999+
$15.74
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESPLE
- Bolt Hole Centres:
- 104.2mm
Technical
Technical

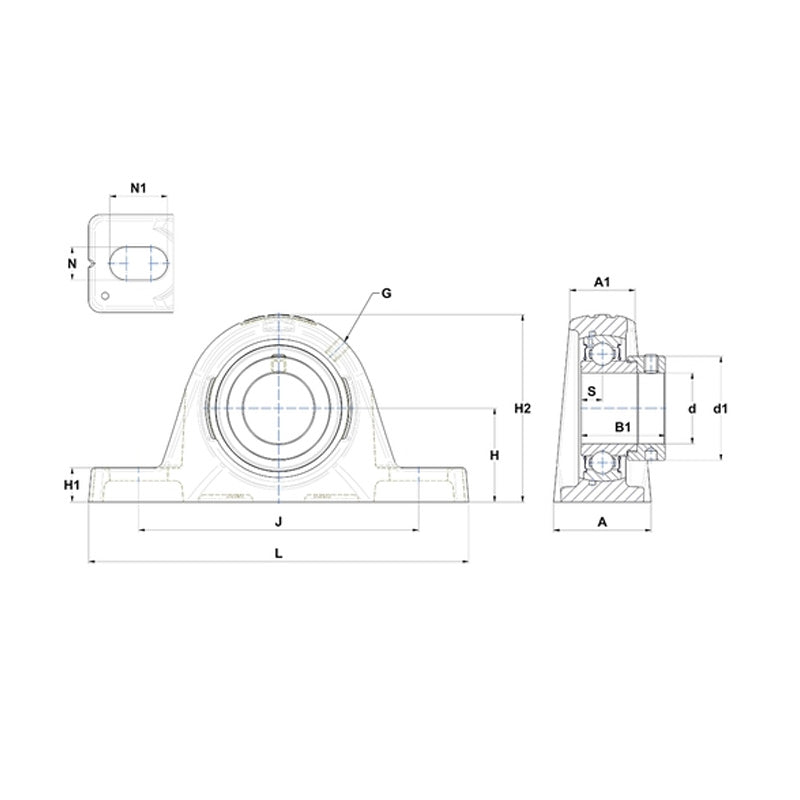

| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 36.5mm |
| A1 | 24.5mm |
| B | 21.4mm |
| d1 | 37.4mm |
| H | 33.3mm |
| H1 | 12.8mm |
| H2 | 67.8mm |
| J | 104.2mm |
| L | 139mm |
| N | 11mm |
| N1 | 17mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.79 kg |
