SKU: ESPLE206-SNR
SNR ESPLE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPLE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$41.21
ex VAT
Regular price
Sale price
$41.21
ex VAT
In stock
Price Break
3+
$30.70
4+
$29.46
9+
$28.84
19+
$27.91
49+
$27.29
99+
$25.74
499+
$21.71
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

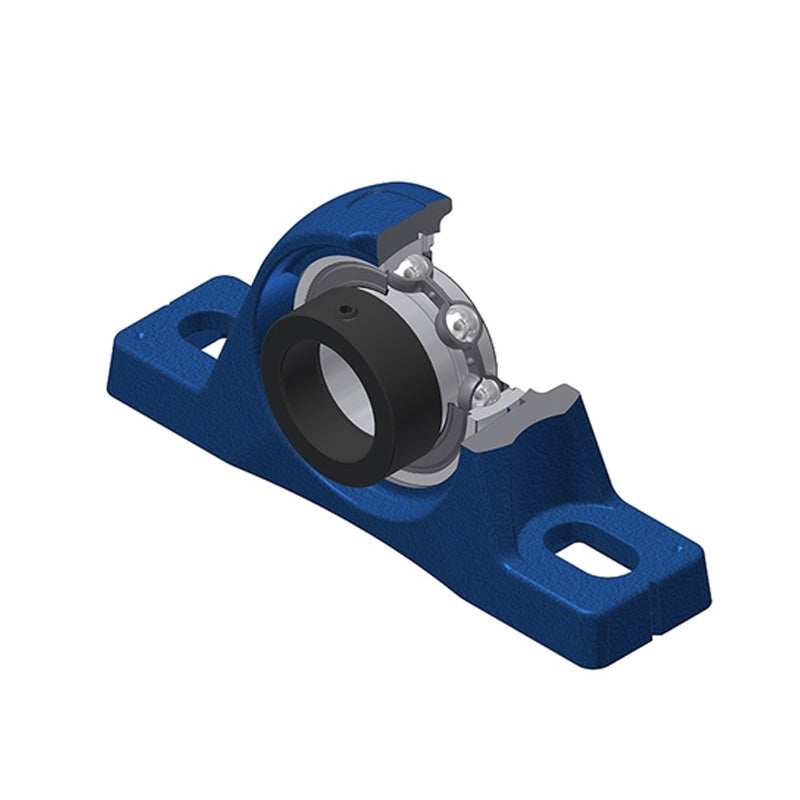

ESPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- ESPLE
- Bolt Hole Centres:
- 119mm
Technical
Technical

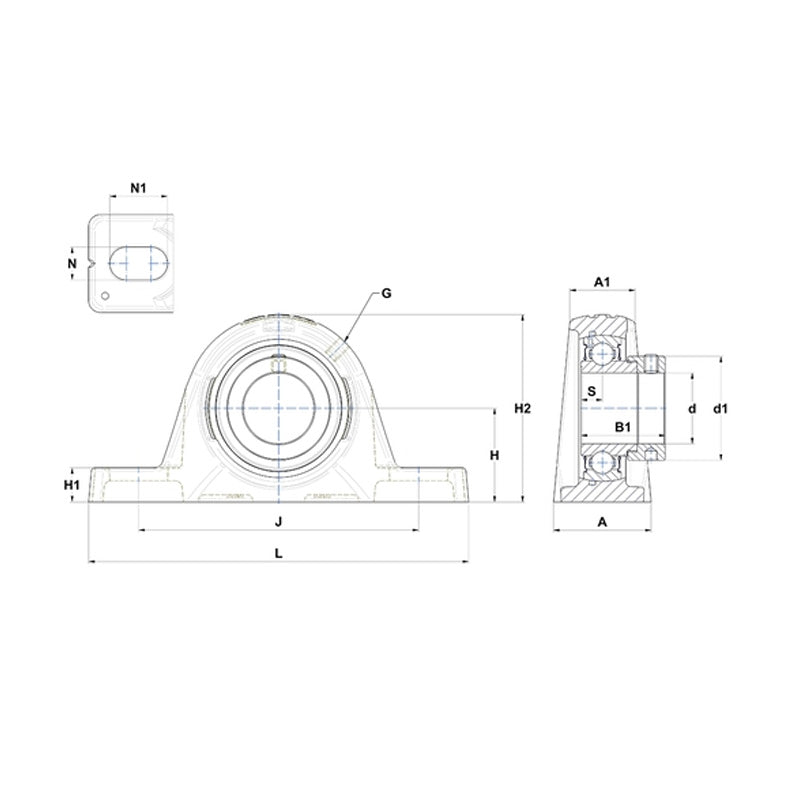

| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 41.5mm |
| A1 | 27.5mm |
| B | 23.8mm |
| d1 | 44.1mm |
| H | 39.7mm |
| H1 | 14.5mm |
| H2 | 79.5mm |
| J | 119mm |
| L | 161.5mm |
| N | 14mm |
| N1 | 24.5mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.13 kg |
