• SNR ESPLE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR ESPLE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 3

SKU: ESPLE207-SNR

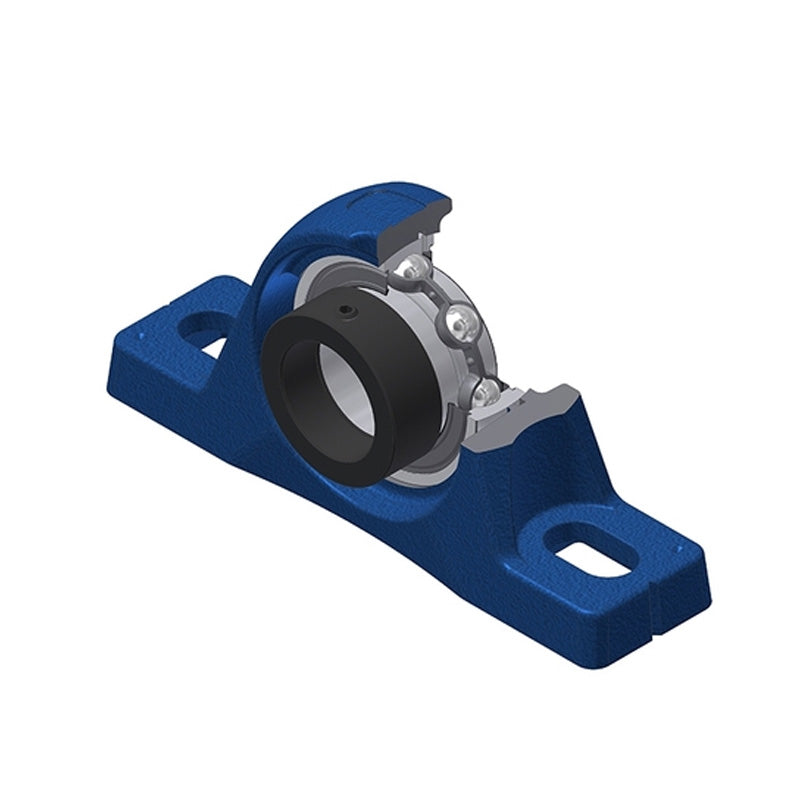

SNR ESPLE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPLE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
$40.57 ex VAT
$40.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
4+ $25.64
9+ $25.34
19+ $25.03
49+ $24.73
99+ $24.42
499+ $22.90
999+ $22.59
1999+ $22.29
2999+ $21.98
4999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
ESPLE
Bolt Hole Centres:
129mm
Technical

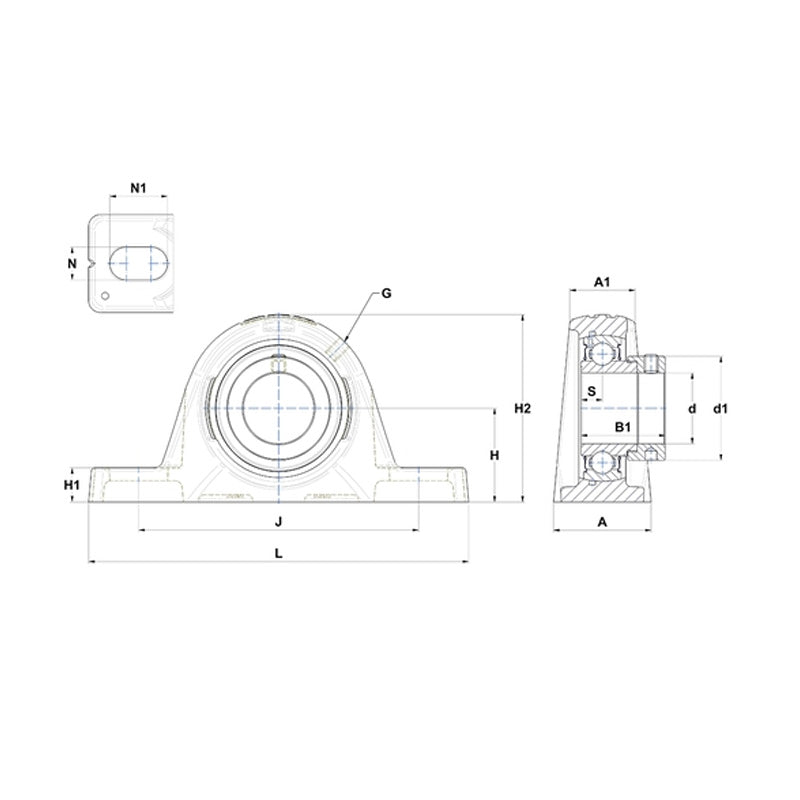

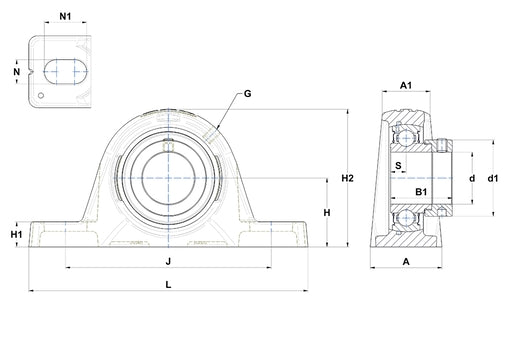

--- Dimensions
Shaft diameter d 35mm
A 44.5mm
A1 30.5mm
B 25.4mm
d1 51.1mm
H 46.2mm
H1 16mm
H2 91.5mm
J 129mm
L 166mm
N 14mm
N1 21.5mm
S 9.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.6 kg
