SKU: ESPLE208-SNR

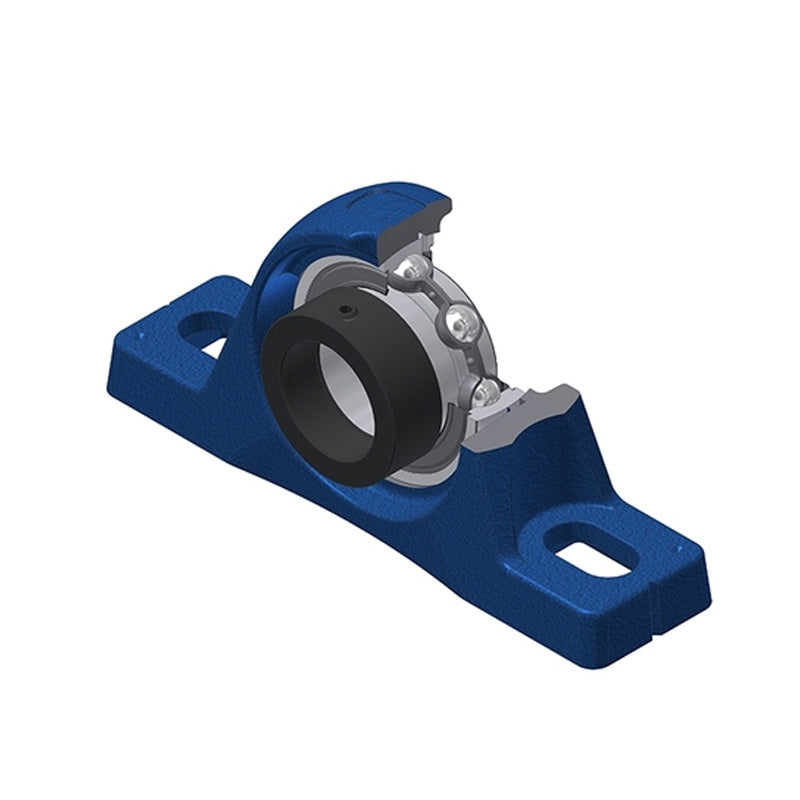

SNR ESPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
$45.97 ex VAT
$45.97 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.79
4+ $29.06
9+ $28.72
19+ $28.37
49+ $28.02
99+ $27.68
499+ $25.95
999+ $25.60
1999+ $25.26
2999+ $24.91
4999+ $24.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESPLE
Bolt Hole Centres:
137.5mm
Technical

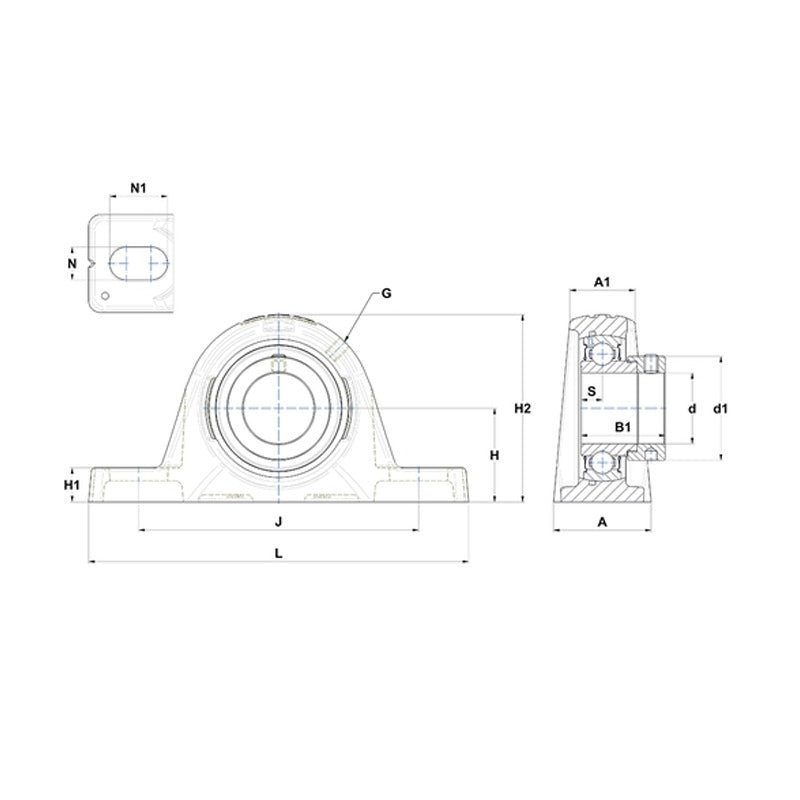

--- Dimensions
Shaft diameter d 40mm
A 51mm
A1 34.5mm
B 30.2mm
d1 58mm
H 49.2mm
H1 18.5mm
H2 98.5mm
J 137.5mm
L 180.5mm
N 14mm
N1 24.5mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.95 kg
