SKU: ESPLE211-SNR

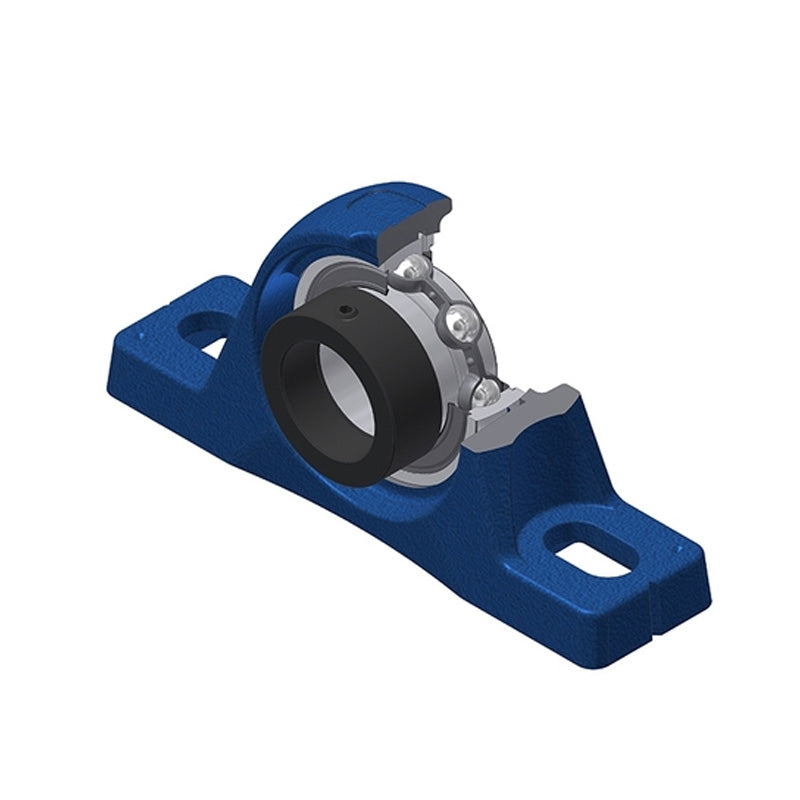

SNR ESPLE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPLE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $102.99 ex VAT
Regular price Sale price $102.99 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.73
4+ $73.63
9+ $72.08
19+ $69.75
49+ $68.20
99+ $64.33
499+ $54.25
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

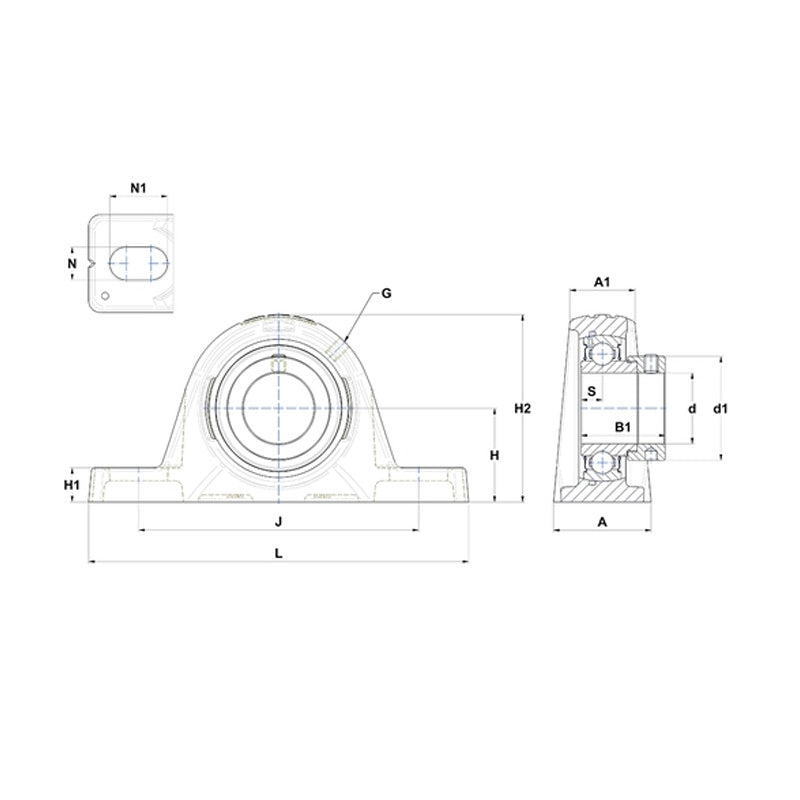

--- Dimensions
Shaft diameter d 55mm
A 60mm
A1 39.5mm
B 32.5mm
d1 74.5mm
H 61.3mm
H1 23.2mm
H2 128mm
J 170.5mm
L 219.5mm
N 18mm
N1 26mm
S 12mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.67 kg
