• SNR ESPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: ESPP204-SNR

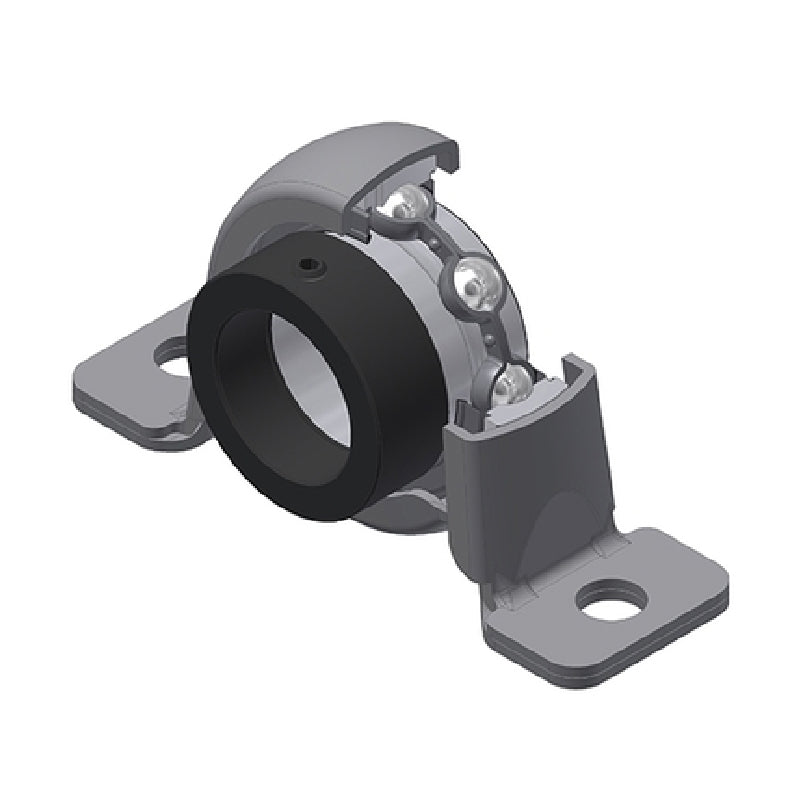

SNR ESPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
$26.19 ex VAT
$26.19 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.54
4+ $16.55
9+ $16.36
19+ $16.16
49+ $15.96
99+ $15.77
499+ $14.78
999+ $14.58
1999+ $14.39
2999+ $14.19
4999+ $13.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESPP
Bolt Hole Centres:
76mm
Technical

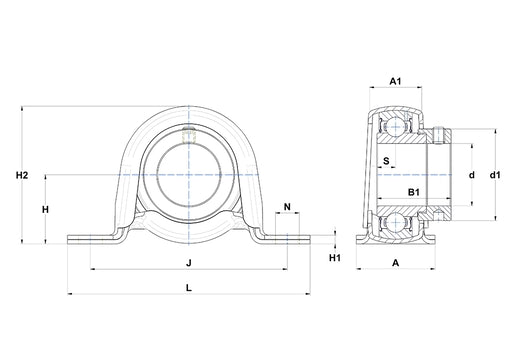

--- Dimensions
Shaft diameter d 20mm
A 31.7mm
A1 21.6mm
B 21.4mm
d1 32.4mm
H 25.4mm
H1 2.4mm
H2 49.9mm
J 76mm
L 98.4mm
N 9mm
S 7.5mm
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.24 kg
