SKU: ESSP205-SNR

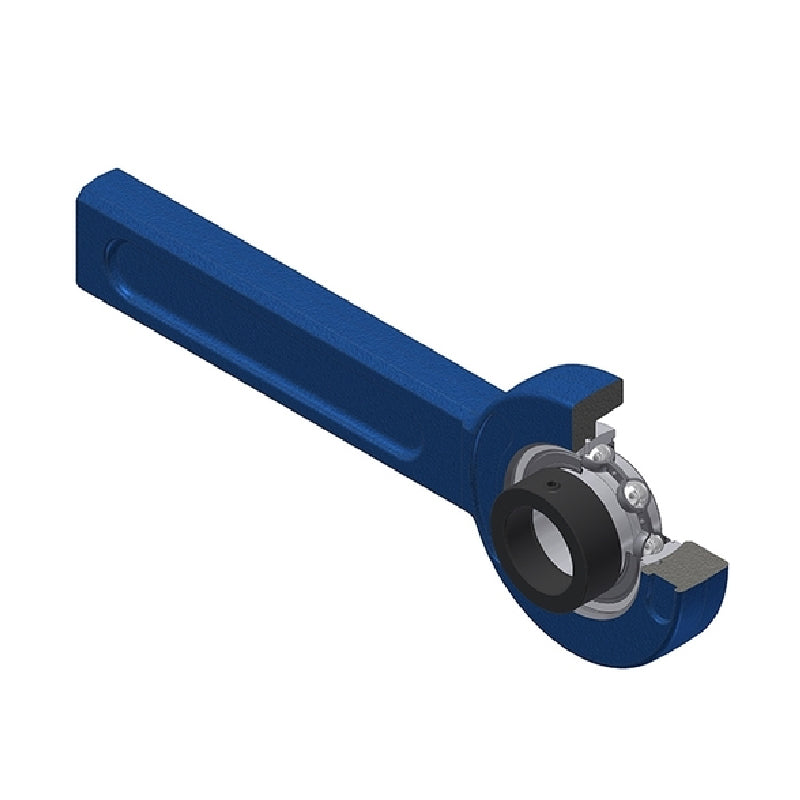

SNR ESSP205 Metric Cast Iron Tensioner Unit with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESSP205 Metric Cast Iron Tensioner Unit with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$73.53
ex VAT
Regular price
Sale price
$73.53
ex VAT
In stock
Price Break
3+
$54.78
4+
$52.56
9+
$51.46
19+
$49.80
49+
$48.69
99+
$45.92
499+
$38.73
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 21mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| H | 78mm |
| H2 | 41mm |
| L | 264mm |
| L1 | 225mm |
| S | 7.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR11 |
| Stretcher frame 3 | SPR12 |
| Stretcher frame 4 | SPR14 |
| Mass | 1.59 kg |
