SKU: ESSP210-SNR

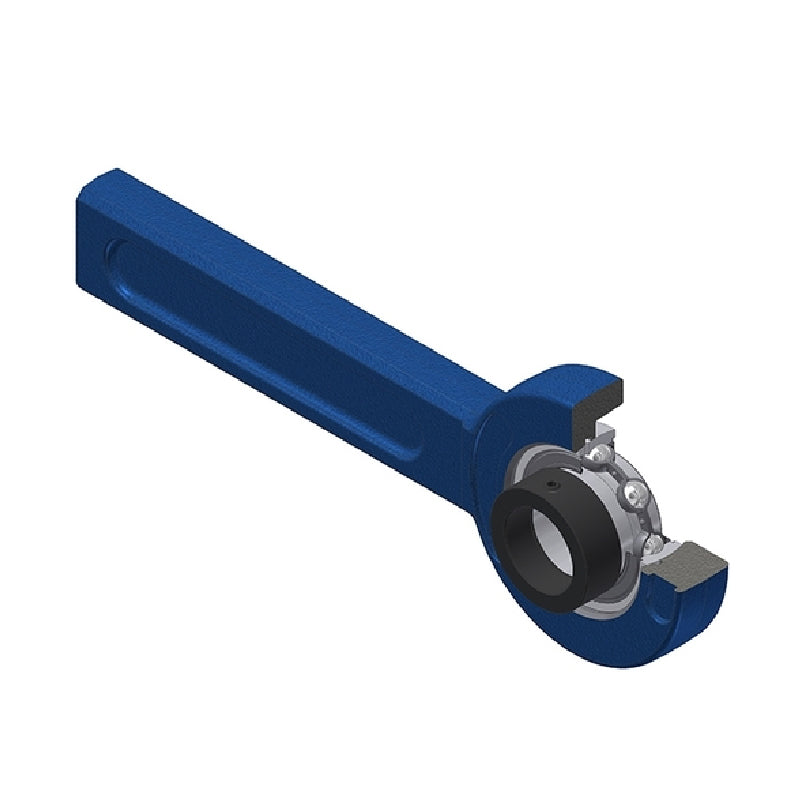

SNR ESSP210 Metric Cast Iron Tensioner Unit with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESSP210 Metric Cast Iron Tensioner Unit with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$235.49
ex VAT
Regular price
Sale price
$235.49
ex VAT
In stock
Price Break
3+
$175.44
4+
$168.35
9+
$164.81
19+
$159.49
49+
$155.94
99+
$147.08
499+
$124.05
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- ESSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 31mm |
| B1 | 43.7mm |
| d1 | 67.2mm |
| H | 120mm |
| H2 | 61mm |
| L | 320mm |
| L1 | 260mm |
| S | 11mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR21 |
| Stretcher frame 3 | SPR22 |
| Stretcher frame 4 | SPR24 |
| Mass | 3.93 kg |
