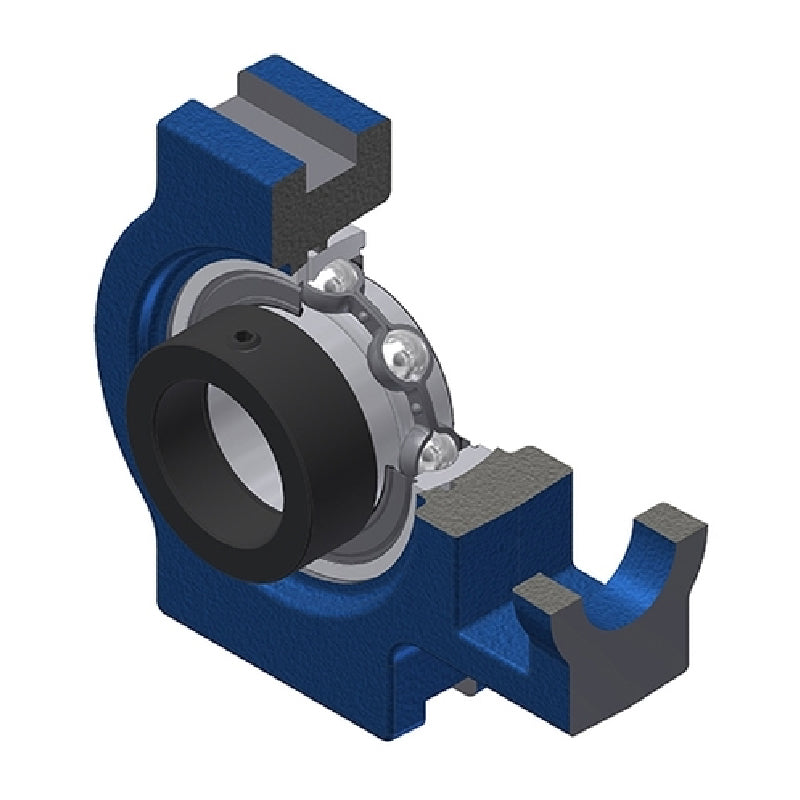

SNR EST204 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days

SNR EST204 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
$29.88 ex VAT
$29.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.02
4+ $18.89
9+ $18.67
19+ $18.44
49+ $18.22
99+ $17.99
499+ $16.87
999+ $16.64
1999+ $16.42
2999+ $16.19
4999+ $15.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
EST
Technical
--- Dimensions
Shaft diameter d 20mm
A 32mm
A1 12mm
A2 21mm
B1 30.9mm
d1 32.4mm
H 89mm
H1 76mm
H2 51mm
L 94mm
L1 61mm
L2 10mm
L3 51mm
N 19mm
N1 16mm
N2 32mm
S 7.5mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 0.75 kg
