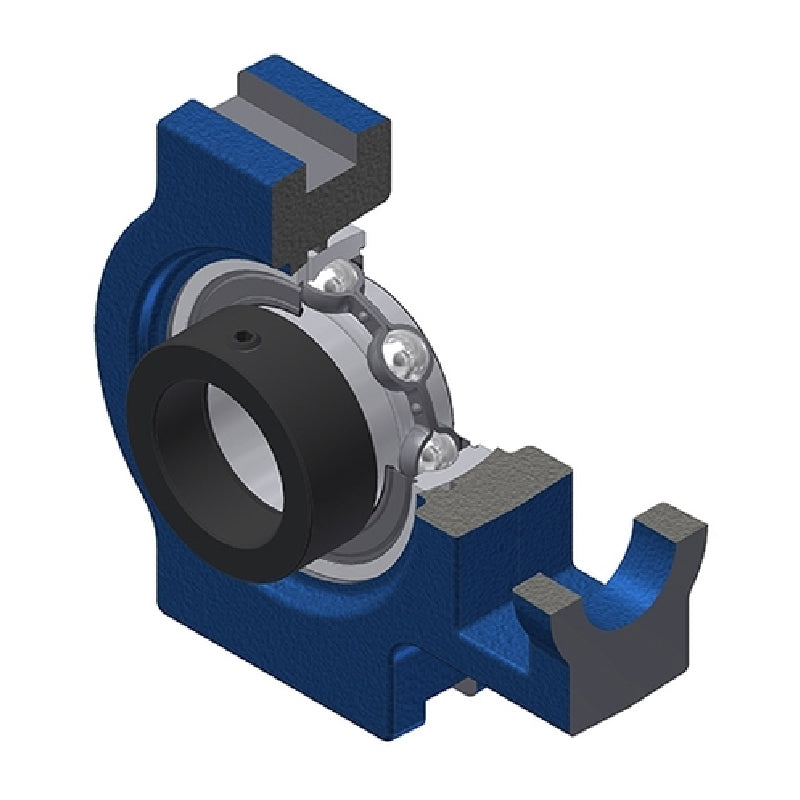

SNR EST205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
SNR EST205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
Regular price
$34.15
ex VAT
Regular price
Sale price
$34.15
ex VAT
In stock
Price Break
3+
$22.88
4+
$21.59
9+
$21.33
19+
$21.08
49+
$20.82
99+
$20.56
499+
$19.28
999+
$19.02
1999+
$18.76
2999+
$18.51
4999+
$17.99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 32mm |
| A1 | 12mm |
| A2 | 24mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| H | 89mm |
| H1 | 76mm |
| H2 | 51mm |
| L | 97mm |
| L1 | 62mm |
| L2 | 10mm |
| L3 | 51mm |
| N | 19mm |
| N1 | 16mm |
| N2 | 32mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.79 kg |
