• SNR EST207 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
  • SNR
1 2

SKU: EST207-SNR

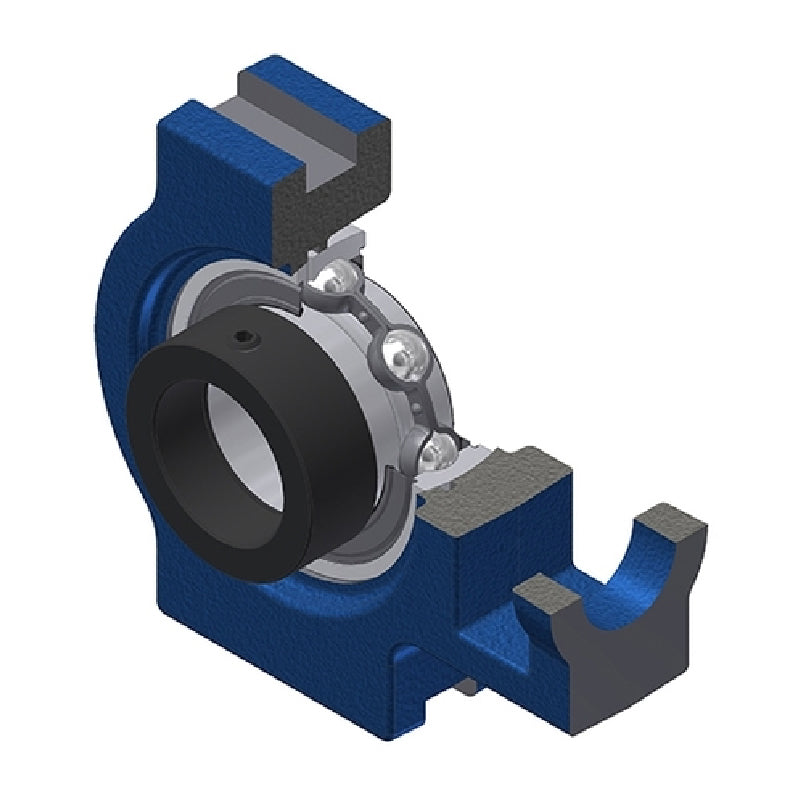

SNR EST207 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days

SNR EST207 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
$48.67 ex VAT
$48.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.60
4+ $30.77
9+ $30.40
19+ $30.04
49+ $29.67
99+ $29.30
499+ $27.47
999+ $27.10
1999+ $26.74
2999+ $26.37
4999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EST
Technical

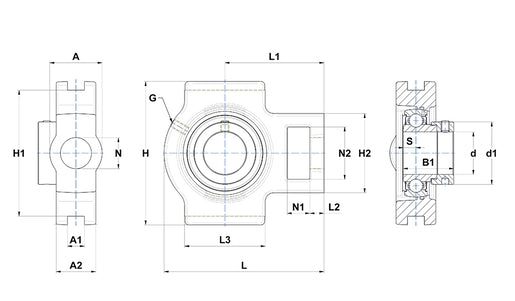

--- Dimensions
Shaft diameter d 35mm
A 37mm
A1 12mm
A2 30mm
B1 38.9mm
d1 51.1mm
H 102mm
H1 89mm
H2 64mm
L 129mm
L1 78mm
L2 13mm
L3 64mm
N 22mm
N1 16mm
N2 37mm
S 9.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.6 kg
