SKU: EST209-SNR

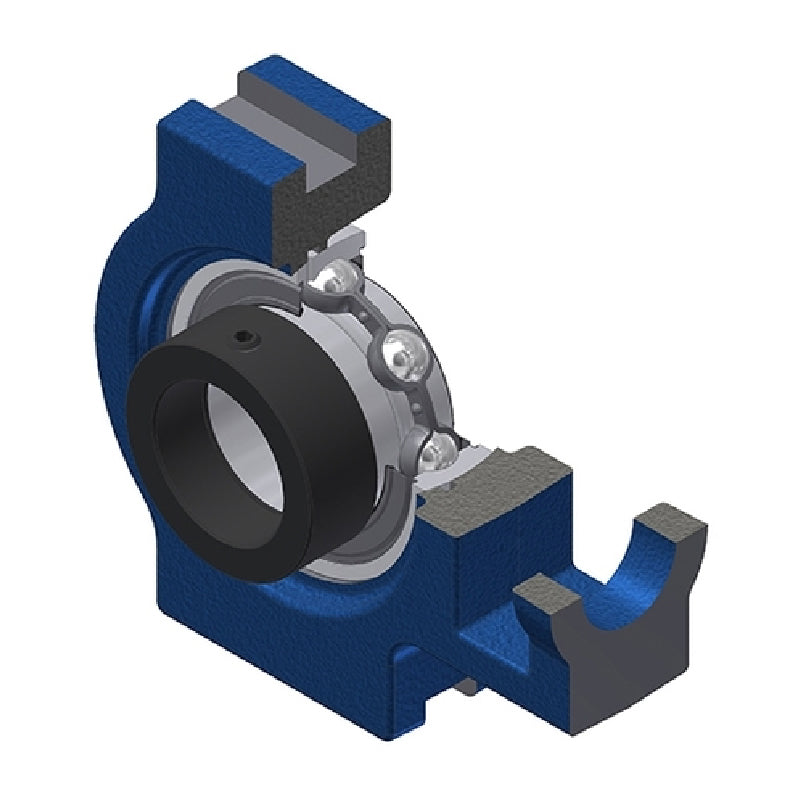

SNR EST209 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days

SNR EST209 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
$69.16 ex VAT
$69.16 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.33
4+ $43.72
9+ $43.20
19+ $42.68
49+ $42.16
99+ $41.64
499+ $39.04
999+ $38.52
1999+ $38.00
2999+ $37.48
4999+ $36.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
EST
Technical
--- Dimensions
Shaft diameter d 45mm
A 49mm
A1 16mm
A2 35mm
B1 43.7mm
d1 62mm
H 117mm
H1 102mm
H2 83mm
L 144mm
L1 87mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.39 kg
