SKU: EX213G2-SNR

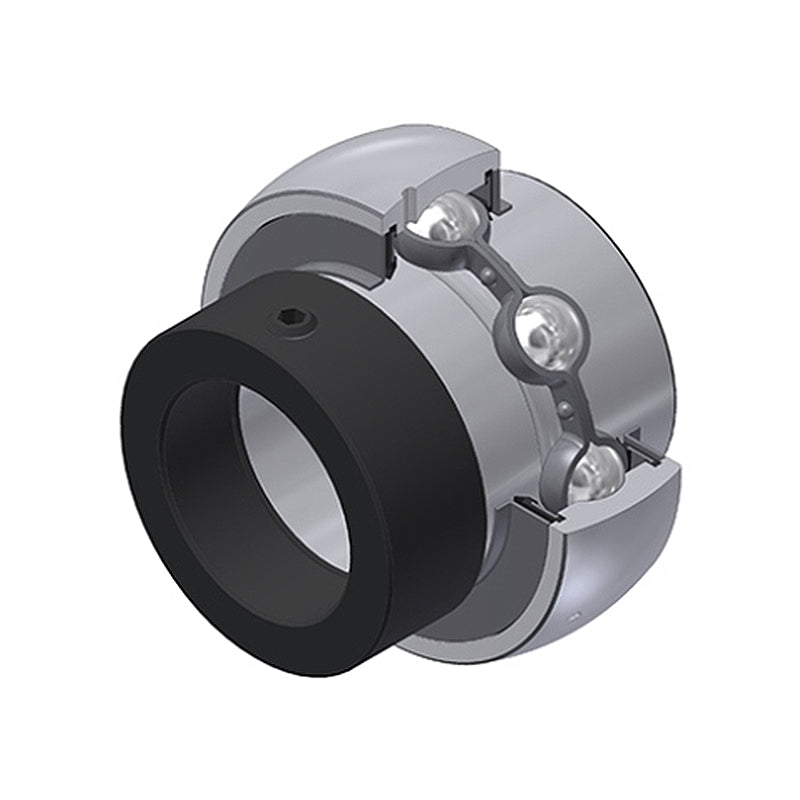

SNR EX213G2 Metric Full Width Spherical Outer Bearing Insert 65mm Bore 120mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
SNR EX213G2 Metric Full Width Spherical Outer Bearing Insert 65mm Bore 120mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
Regular price
$103.08
ex VAT
Regular price
Sale price
$103.08
ex VAT
In stock
Price Break
3+
$76.79
5+
$73.69
9+
$72.14
19+
$69.81
49+
$68.26
74+
$64.38
99+
$54.30
199+
$0.00
249+
$0.00
499+
$0.00
999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SNR EX Full Width Spherical Outer Bearing Insert with Eccentric Collar: This bearing insert is a standard version designed for robust performance. Each steel insert features a single lip seal and slinger on both sides, along with a wide inner ring design. It includes a zinc-coated sheet steel retainer over-molded with NBR, with an axially preloaded seal lip and a preconnected, zinc-coated sheet steel slinger for improved protection against mechanical impacts and particles. This bearing insert supports medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M10x1.25
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 85.7mm
- Style:
- EX
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| C | 28mm |
| B | 68.2mm |
| B1 | 85.7mm |
| B2 | 23.5mm |
| d1 | 86mm |
| S | 34.1mm |
| m | 8.5mm |
| C1 | 8mm |
| r min | 1.5mm |
| G | M10x1.25 |
| Wrench Size | 5mm |
| Set screw torque | 22 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 57.2kN |
| Static load rating C0 | 40kN |
| Weight | 2.4kg |
