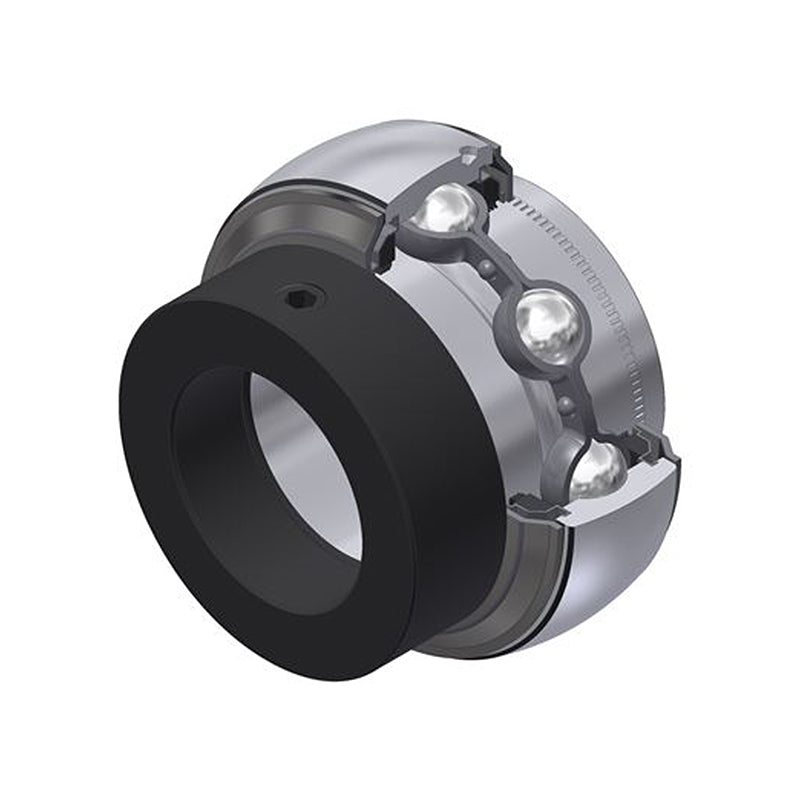

SNR EX308AGR Metric Full Width Spherical Outer Agricultural Bearing Insert 40mm Bore 90mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR EX-AGR Full Width Spherical Outer Service-Free Bearing Insert with Eccentric Collar and Triple Lip Seals: This bearing insert is engineered for heavily dirt-contaminated environments, featuring a high-performance AGR seal system on both sides of the insert. Each steel insert includes a wide inner ring design and boasts a 90% grease filling, ensuring maintenance-free operation. It incorporates a zinc-coated steel sheet retainer with a vulcanized triple lip seal, where the lips made from NBR are axially preloaded and angled outwards. The triple lip seal is fully covered by a robust steel protector, with the zinc-coated impact shield additionally equipped with a lip seal and securely fastened on a knurled seat. Designed for extremely polluted environments, this insert is shock-resistant and suitable for low rotation speeds, and high-pressure washing, but it incurs higher friction. It's important to note that it's not suitable for use in all standard housings.
Benefits: High-quality brand, high-performance, triple lip sealed

Brand / Quality:

SNR - High Quality

Thread Size:

M10x1.25

Inside Diameter:

40mm

Outside Diameter:

90mm

Width:

65.3mm

Style:

EX
