SKU: EXC201-SNR

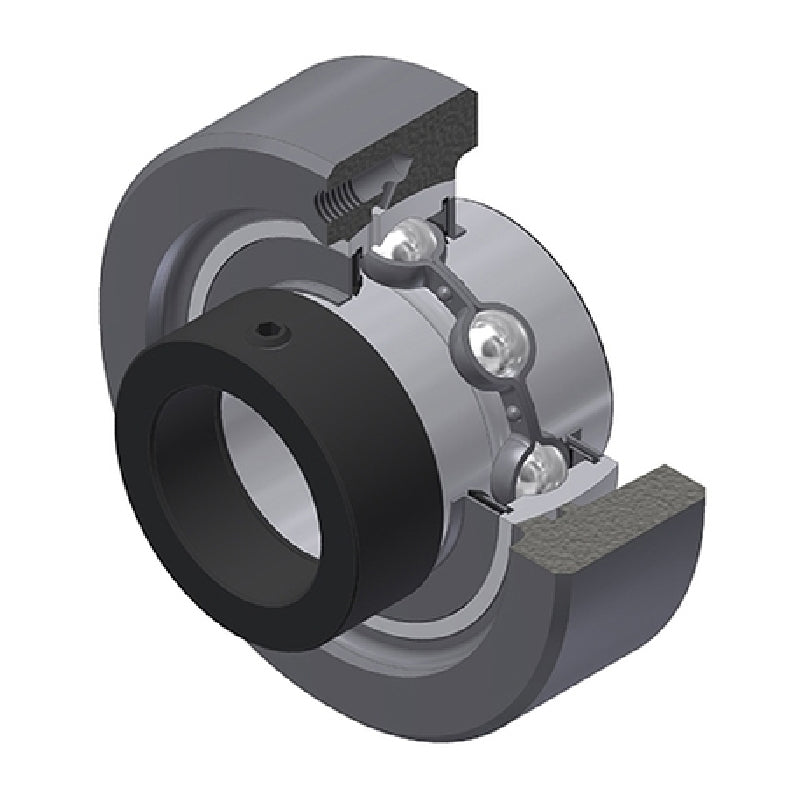

SNR EXC201 Metric Cast Iron Cartridge Unit with 12mm Bore Insert 20mm Outside Dia - Allow 2-3 Days
SNR EXC201 Metric Cast Iron Cartridge Unit with 12mm Bore Insert 20mm Outside Dia - Allow 2-3 Days
Regular price
$35.30
ex VAT
Regular price
Sale price
$35.30
ex VAT
In stock
Price Break
3+
$26.29
4+
$25.23
9+
$24.70
19+
$23.90
49+
$23.37
99+
$22.04
499+
$18.59
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXC200 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 12mm |
| A | 20mm |
| A3 | 1.5mm |
| B1 | 43.5mm |
| d1 | 32.4mm |
| H | 72mm |
| S | 17mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.59 kg |
