SKU: EXC207-SNR
SNR EXC207 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
SNR EXC207 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 28mm Outside Dia - Allow 2-3 Days
Regular price
$73.55
ex VAT
Regular price
Sale price
$73.55
ex VAT
In stock
Price Break
3+
$54.80
4+
$52.58
9+
$51.48
19+
$49.82
49+
$48.71
99+
$45.94
499+
$38.75
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

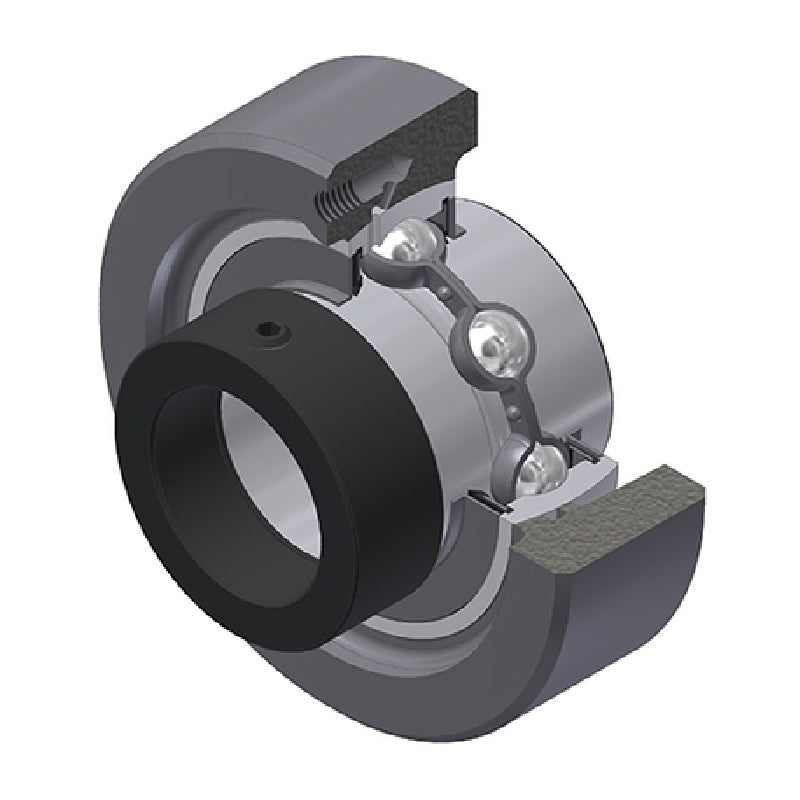

EXC200 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 28mm |
| A3 | 1.5mm |
| B1 | 51.1mm |
| d1 | 51.1mm |
| H | 90mm |
| S | 18.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1 kg |
