SKU: EXC307-SNR

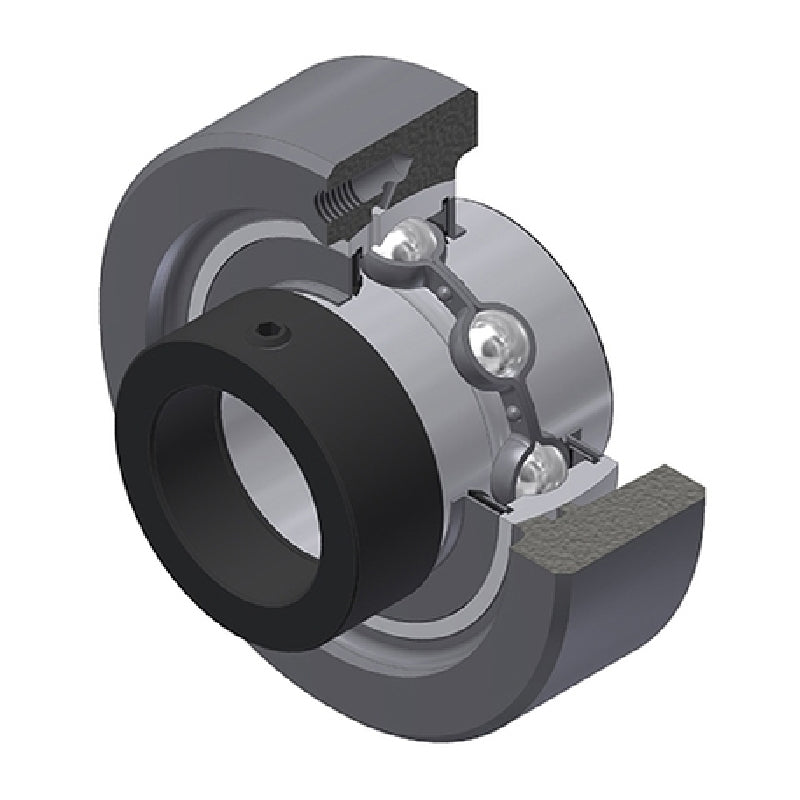

SNR EXC307 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 32mm Outside Dia - Allow 2-3 Days
SNR EXC307 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 32mm Outside Dia - Allow 2-3 Days
Regular price
$103.04
ex VAT
Regular price
Sale price
$103.04
ex VAT
In stock
Price Break
3+
$76.76
4+
$73.66
9+
$72.11
19+
$69.79
49+
$68.24
99+
$64.36
499+
$54.28
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 32mm |
| A3 | 2mm |
| B1 | 51.6mm |
| d1 | 55mm |
| H | 110mm |
| S | 18.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 33.5 kN |
| Static load C0 | 19.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.8 kg |
