SKU: EXC308-SNR
SNR EXC308 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 34mm Outside Dia - Allow 2-3 Days
SNR EXC308 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 34mm Outside Dia - Allow 2-3 Days
Regular price
$117.82
ex VAT
Regular price
Sale price
$117.82
ex VAT
In stock
Price Break
3+
$87.77
4+
$84.23
9+
$82.45
19+
$79.79
49+
$78.02
99+
$73.59
499+
$62.06
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

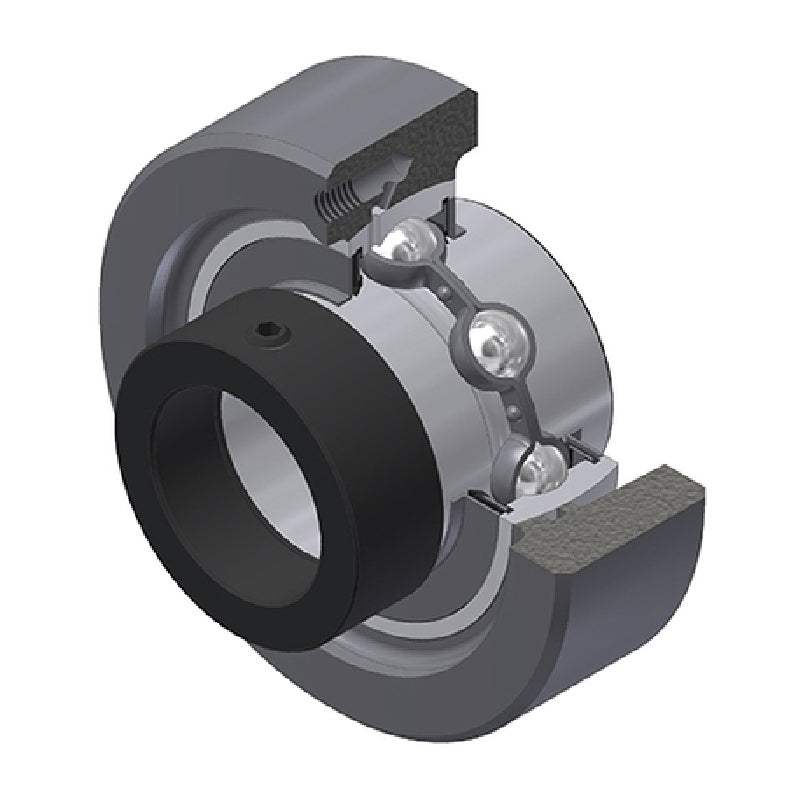

EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 34mm |
| A3 | 2mm |
| B1 | 57.1mm |
| d1 | 63.5mm |
| H | 120mm |
| S | 19.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.28 kg |
