SKU: EXC311-SNR

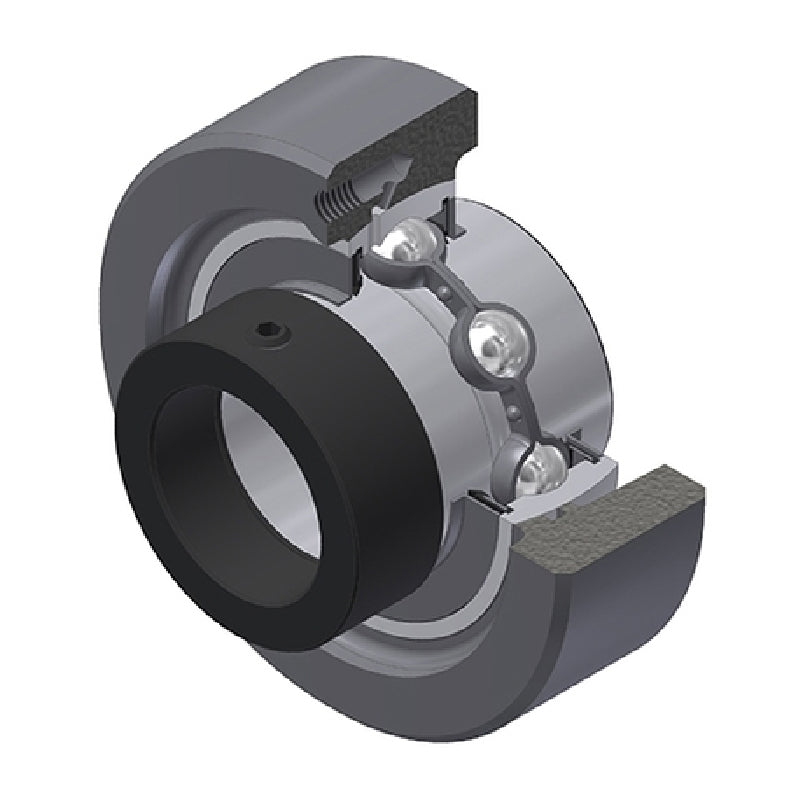

SNR EXC311 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 44mm Outside Dia - Allow 2-3 Days
SNR EXC311 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 44mm Outside Dia - Allow 2-3 Days
Regular price
$235.53
ex VAT
Regular price
Sale price
$235.53
ex VAT
In stock
Price Break
3+
$175.47
4+
$168.38
9+
$164.83
19+
$159.52
49+
$155.97
99+
$147.11
499+
$124.07
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 44mm |
| A3 | 2.5mm |
| B1 | 73mm |
| d1 | 83mm |
| H | 150mm |
| S | 27.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.3 kg |
