SKU: EXC316-SNR

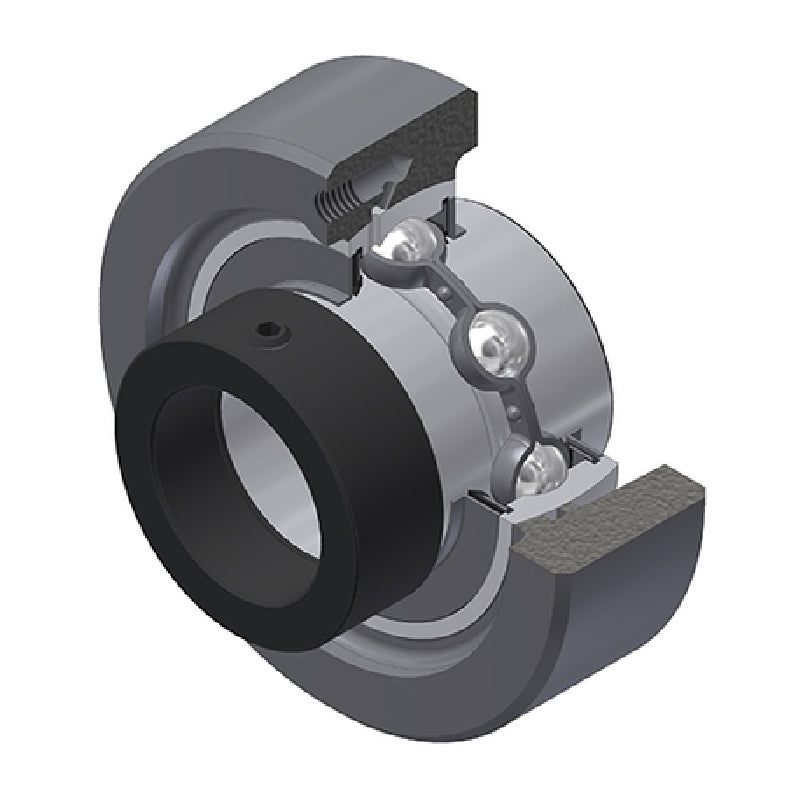

SNR EXC316 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 60mm Outside Dia - Allow 2-3 Days
SNR EXC316 Metric Cast Iron Cartridge Unit with 80mm Bore Insert 60mm Outside Dia - Allow 2-3 Days
Regular price
$662.99
ex VAT
Regular price
Sale price
$662.99
ex VAT
In stock
Price Break
3+
$493.91
4+
$473.96
9+
$463.98
19+
$449.01
49+
$439.03
99+
$414.09
499+
$349.23
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 60mm |
| A3 | 2.5mm |
| B1 | 106.4mm |
| d1 | 119mm |
| H | 200mm |
| S | 40.5mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 122.85 kN |
| Static load C0 | 86.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 10.3 kg |
