SKU: EXC318-SNR

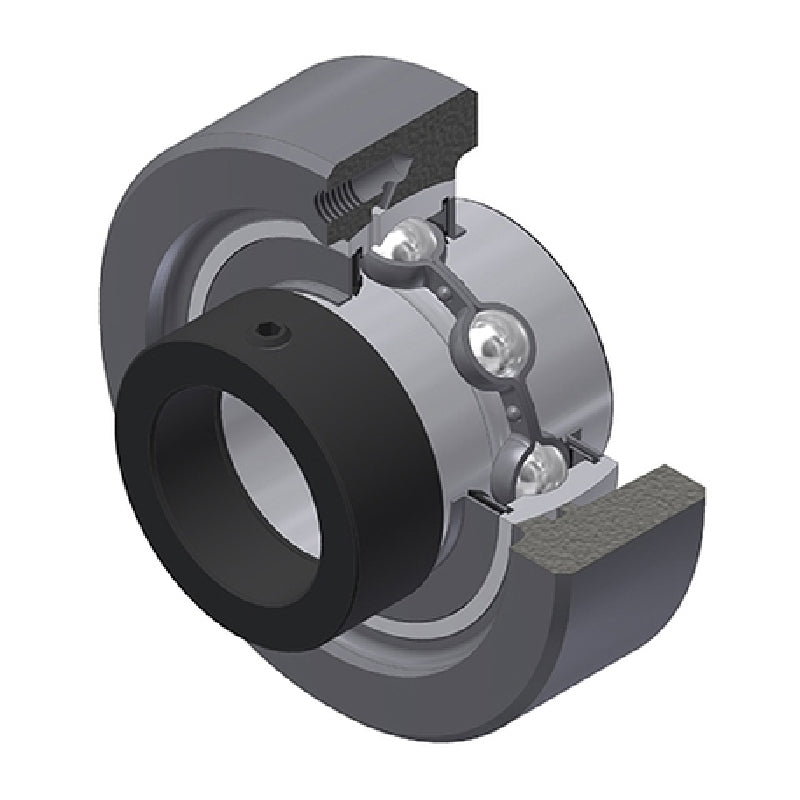

SNR EXC318 Metric Cast Iron Cartridge Unit with 90mm Bore Insert 66mm Outside Dia - Allow 2-3 Days
SNR EXC318 Metric Cast Iron Cartridge Unit with 90mm Bore Insert 66mm Outside Dia - Allow 2-3 Days
Regular price
$662.97
ex VAT
Regular price
Sale price
$662.97
ex VAT
In stock
Price Break
3+
$493.90
4+
$473.95
9+
$463.97
19+
$449.00
49+
$439.02
99+
$414.08
499+
$349.22
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 66mm |
| A3 | 3mm |
| B1 | 115.9mm |
| d1 | 133mm |
| H | 225mm |
| S | 43.6mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 143 kN |
| Static load C0 | 108 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 14.4 kg |
