SKU: EXC320-SNR
SNR EXC320 Metric Cast Iron Cartridge Unit with 100mm Bore Insert 75mm Outside Dia - Allow 2-3 Days
SNR EXC320 Metric Cast Iron Cartridge Unit with 100mm Bore Insert 75mm Outside Dia - Allow 2-3 Days
Regular price
$802.73
ex VAT
Regular price
Sale price
$802.73
ex VAT
In stock
Price Break
3+
$573.86
4+
$543.65
9+
$513.45
19+
$483.25
49+
$471.17
99+
$459.09
499+
$398.68
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

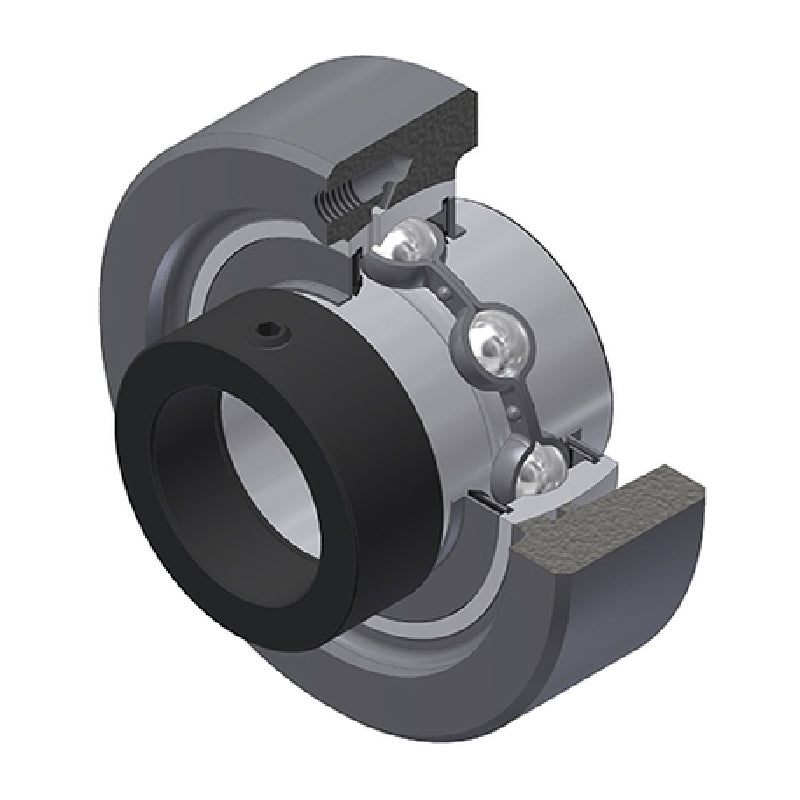

EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 100mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 100mm |
| A | 75mm |
| A3 | 3mm |
| B1 | 128.6mm |
| d1 | 146mm |
| H | 260mm |
| S | 50mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 171.6 kN |
| Static load C0 | 140 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 21.9 kg |
