• SNR EXEHE205 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
  • SNR
1 2

SKU: EXEHE205-SNR

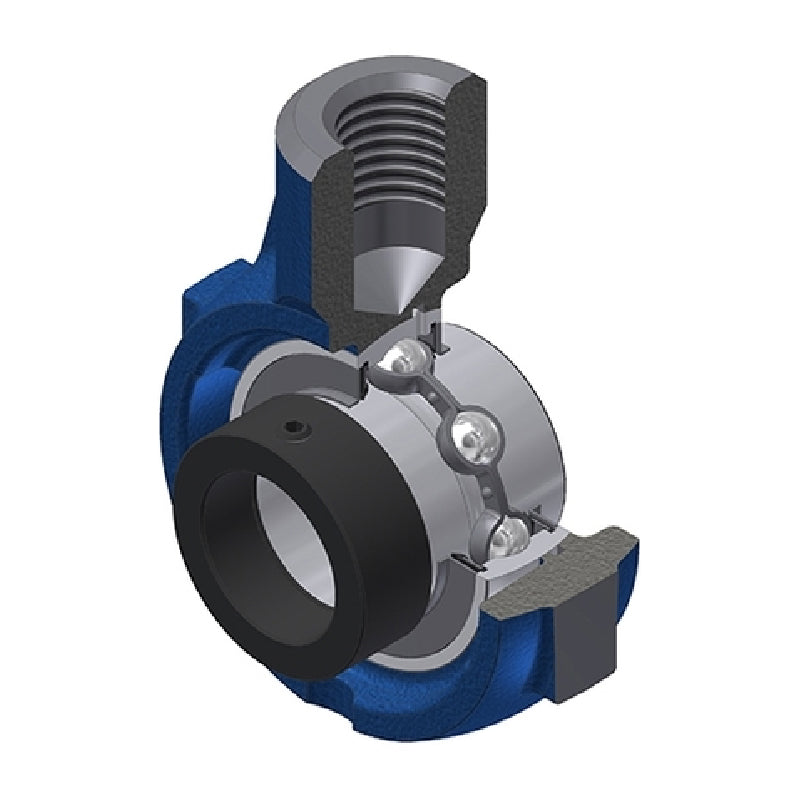

SNR EXEHE205 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days

SNR EXEHE205 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
$37.00 ex VAT
$37.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.78
4+ $23.39
9+ $23.11
19+ $22.83
49+ $22.56
99+ $22.28
499+ $20.88
999+ $20.61
1999+ $20.33
2999+ $20.05
4999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXEHE
Technical

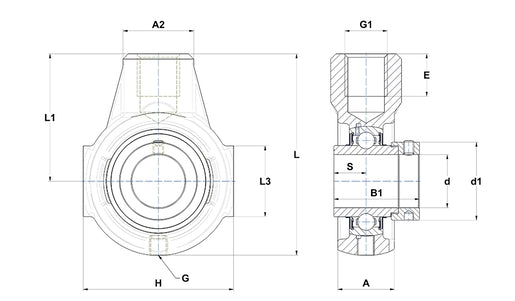

--- Dimensions
Shaft diameter d 25mm
A 28mm
A2 35mm
B1 44.3mm
d1 37.4mm
E 22mm
H 70mm
L 99mm
L1 64mm
L3 38mm
S 17.4mm
G R1/8″
G1 M20
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 0.75 kg
