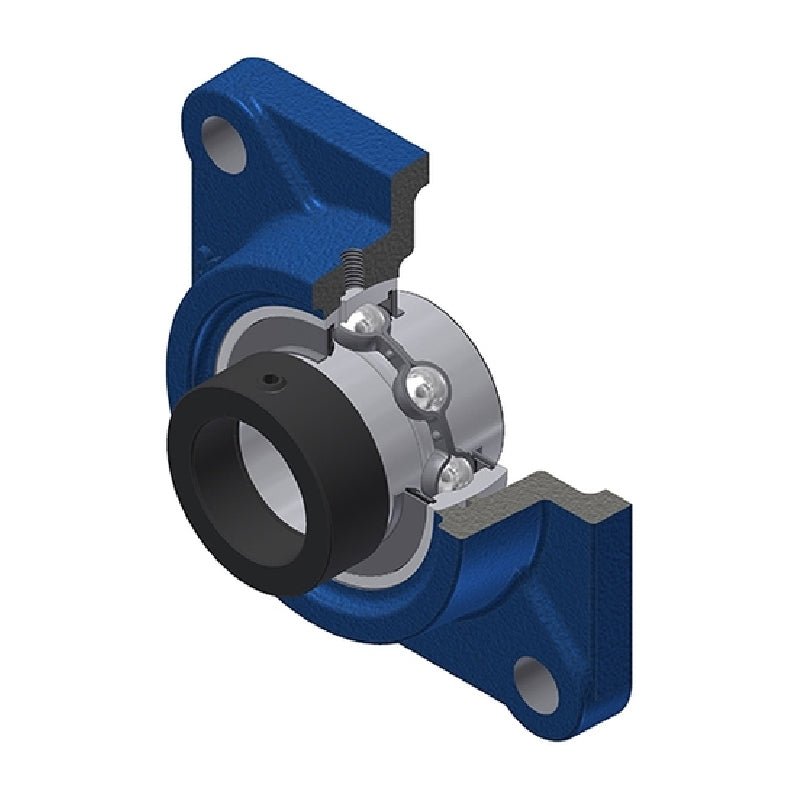

SNR EXF205 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF205 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$39.85
ex VAT
Regular price
Sale price
$39.85
ex VAT
In stock
Price Break
3+
$26.69
4+
$25.19
9+
$24.89
19+
$24.59
49+
$24.29
99+
$23.99
499+
$22.49
999+
$22.19
1999+
$21.89
2999+
$21.59
4999+
$20.99
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXF
- Bolt Hole Centres:
- 70mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 27mm |
| A1 | 13mm |
| A2 | 42.9mm |
| B | 34.8mm |
| B1 | 44.3mm |
| d1 | 37.4mm |
| e | 16mm |
| J | 70mm |
| L | 95mm |
| N | 12mm |
| S | 17.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.84 kg |
