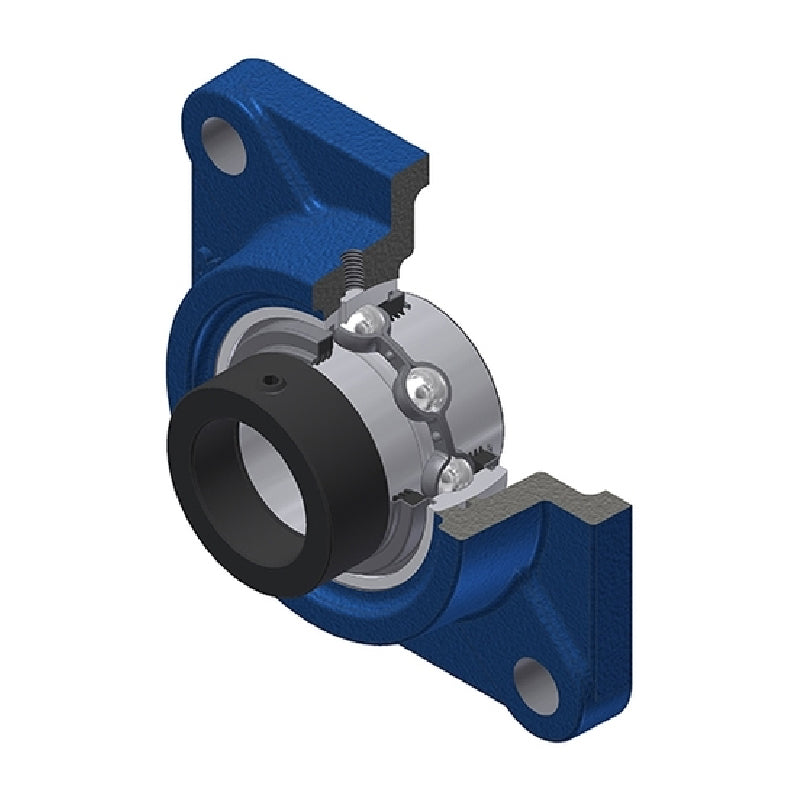

• SNR EXF206L3 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
1 1

SKU: EXF206L3-SNR

SNR EXF206L3 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days

SNR EXF206L3 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
$73.59 ex VAT
$73.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.83
4+ $52.61
9+ $51.50
19+ $49.84
49+ $48.73
99+ $45.97
499+ $38.77
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EXF
Bolt Hole Centres:
83mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 31mm
A1 13mm
A2 48.1mm
B 36.4mm
B1 48.3mm
d1 44.1mm
e 18mm
J 83mm
L 108mm
N 12mm
S 18.2mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.2 kg
