• SNR EXF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXF207-SNR

SNR EXF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
$51.23 ex VAT
$51.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.31
4+ $32.39
9+ $32.00
19+ $31.62
49+ $31.23
99+ $30.84
499+ $28.92
999+ $28.53
1999+ $28.15
2999+ $27.76
4999+ $26.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EXF
Bolt Hole Centres:
92mm
Technical

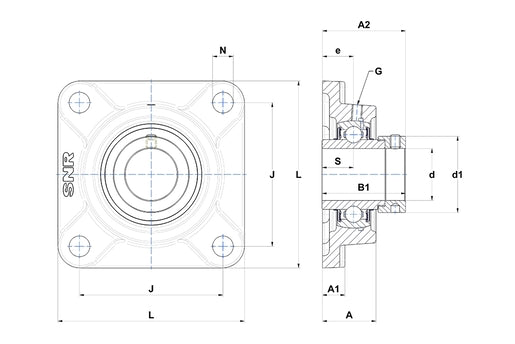

--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 15mm
A2 51.3mm
B 37.6mm
B1 51.1mm
d1 51.1mm
e 19mm
J 92mm
L 117mm
N 14mm
S 18.8mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.63 kg
