SKU: EXFC207-SNR

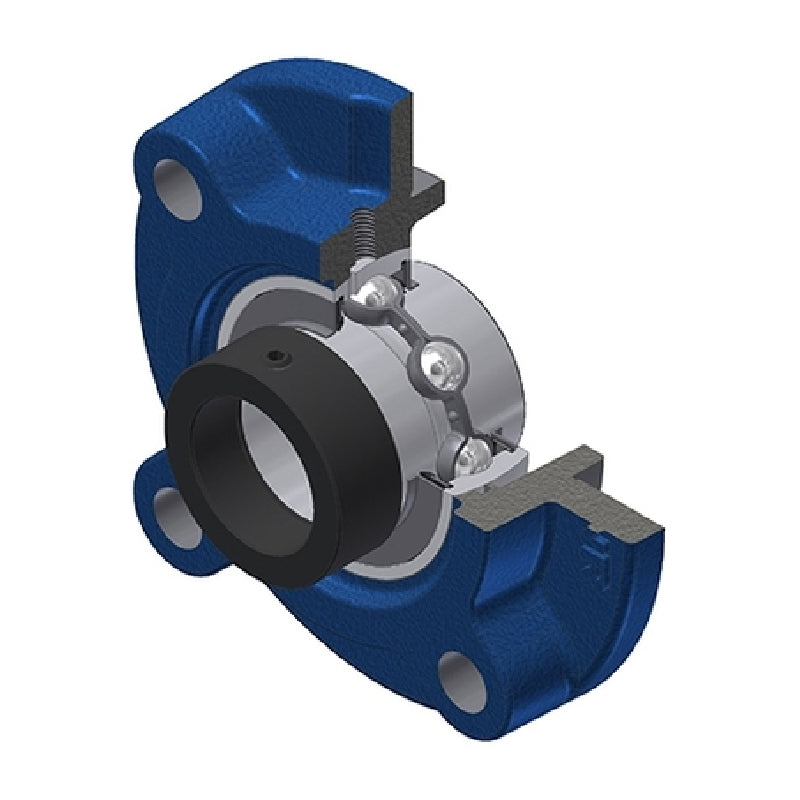

SNR EXFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $73.55 ex VAT
Regular price Sale price $73.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.80
4+ $52.58
9+ $51.48
19+ $49.82
49+ $48.71
99+ $45.94
499+ $38.75
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 9mm
A2 43.3mm
A4 26mm
B 37.6mm
B1 51.1mm
d1 51.1mm
e 11mm
H3 90mm
J 110mm
L 135mm
N 14mm
S 18.8mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.79 kg
