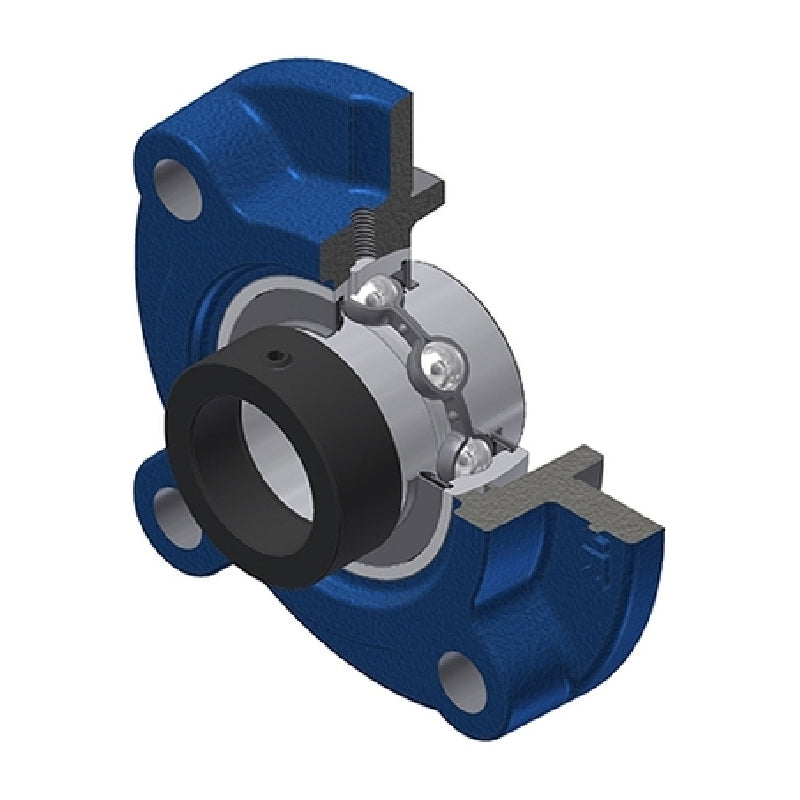

• SNR EXFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFC210-SNR

SNR EXFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
$72.79 ex VAT
$72.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $48.76
4+ $46.02
9+ $45.47
19+ $44.92
49+ $44.38
99+ $43.83
499+ $41.09
999+ $40.54
1999+ $39.99
2999+ $39.44
4999+ $38.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXFC
Pitch Circle Diameter:
138mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 14mm
A2 48.1mm
A4 28mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 10mm
H3 110mm
J 138mm
L 165mm
N 16mm
S 24.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.05 kg
