SKU: EXFC211N-SNR

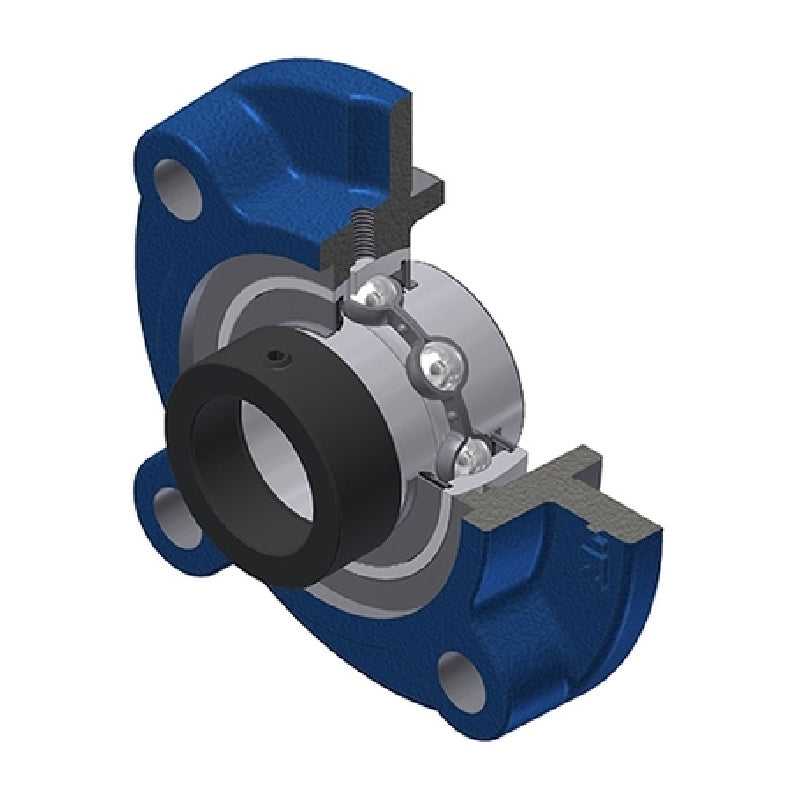

SNR EXFC211N Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC211N Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $147.23 ex VAT
Regular price Sale price $147.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.68
4+ $105.25
9+ $103.03
19+ $99.71
49+ $97.50
99+ $91.96
499+ $77.55
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 42mm
A1 13mm
A2 56.6mm
A4 30mm
B 55.4mm
B1 71.3mm
d1 74.5mm
e 13mm
H3 125mm
J 150mm
L 185mm
N 19mm
S 27.7mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.07 kg
