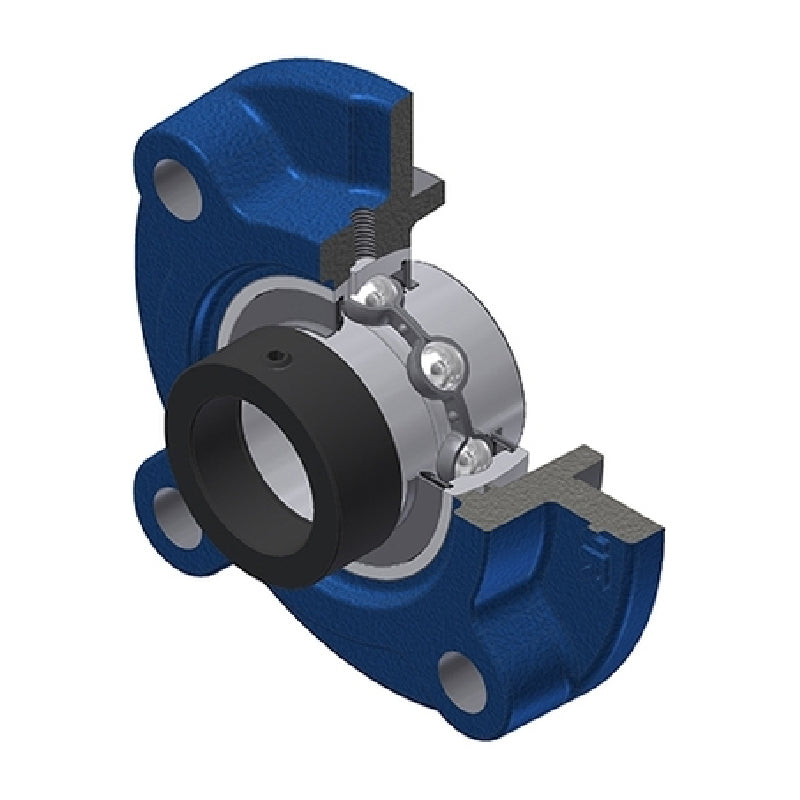

• SNR EXFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFC212-SNR

SNR EXFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
$108.09 ex VAT
$108.09 ex VAT
Sale Sold out

In stock

Price Break
3+ $72.40
4+ $68.33
9+ $67.52
19+ $66.70
49+ $65.89
99+ $65.08
499+ $61.01
999+ $60.20
1999+ $59.38
2999+ $58.57
4999+ $56.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
EXFC
Pitch Circle Diameter:
160mm
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 15mm
A2 63.8mm
A4 36mm
B 61.8mm
B1 77.7mm
d1 82mm
e 17mm
H3 135mm
J 160mm
L 195mm
N 19mm
S 30.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.26 kg
