SKU: EXFC213N-SNR

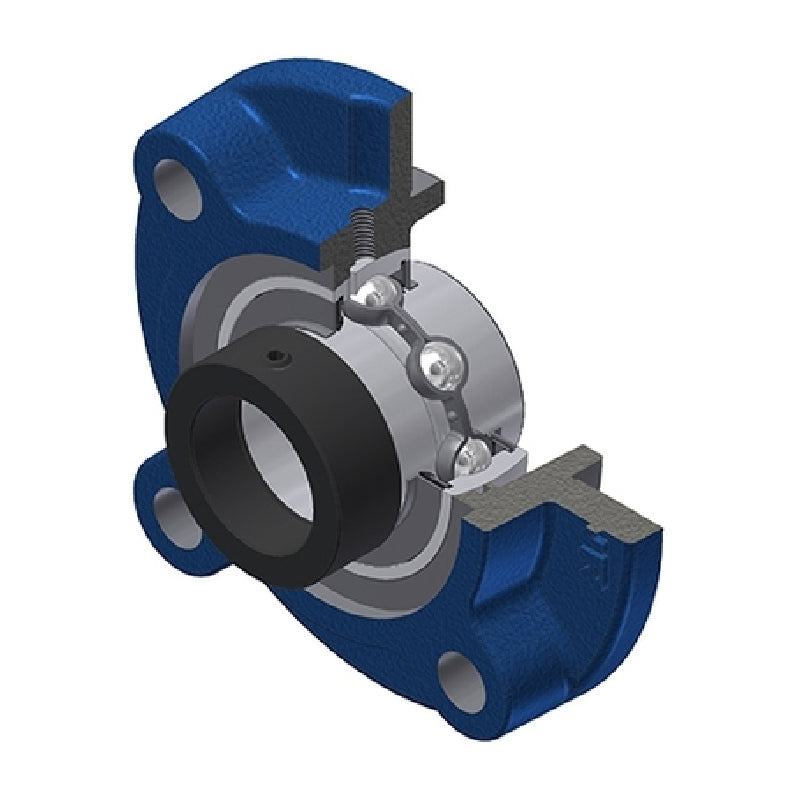

SNR EXFC213N Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC213N Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $206.20 ex VAT
Regular price Sale price $206.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.62
4+ $147.41
9+ $144.31
19+ $139.65
49+ $136.55
99+ $128.79
499+ $108.62
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 65mm
A 49mm
A1 15mm
A2 67.6mm
A4 35mm
B 68.2mm
B1 85.7mm
d1 86mm
e 16mm
H3 145mm
J 170mm
L 205mm
N 19mm
S 34.1mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.99 kg
