SKU: EXFC218-SNR

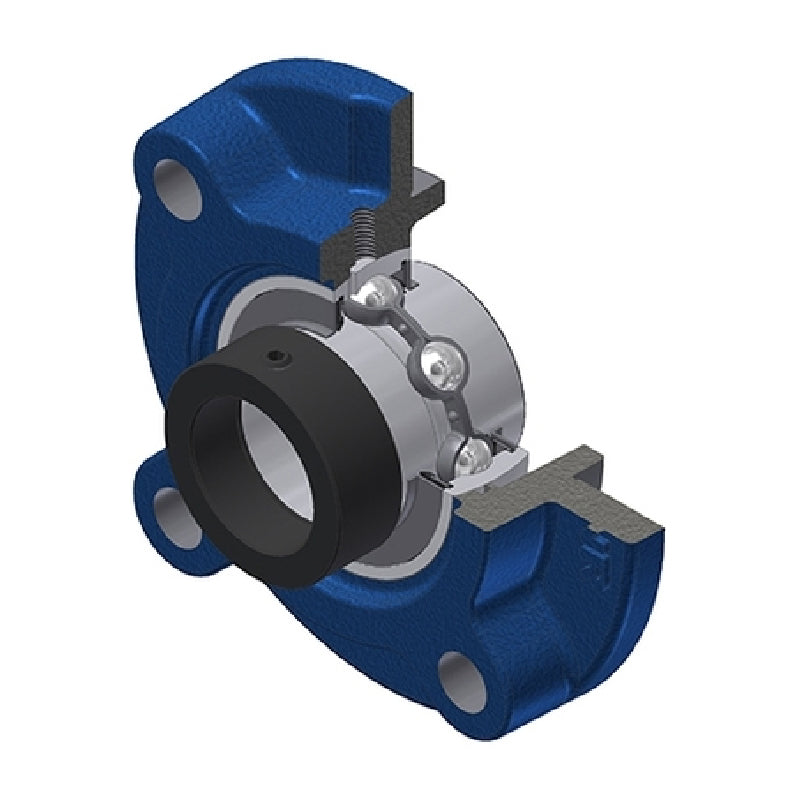

SNR EXFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $367.29 ex VAT
Regular price Sale price $367.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $246.02
4+ $232.20
9+ $229.44
19+ $226.67
49+ $223.91
99+ $221.14
499+ $207.32
999+ $204.56
1999+ $201.79
2999+ $199.03
4999+ $193.50
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 90mm
A 68mm
A1 20mm
A2 70mm
A4 50mm
B 55mm
B1 72.5mm
d1 120mm
e 22mm
H3 190mm
J 220mm
L 265mm
N 23mm
S 24.5mm
G M10x1
--- Load rating
Dynamic load C 96 kN
Static load C0 71.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 13.52 kg
