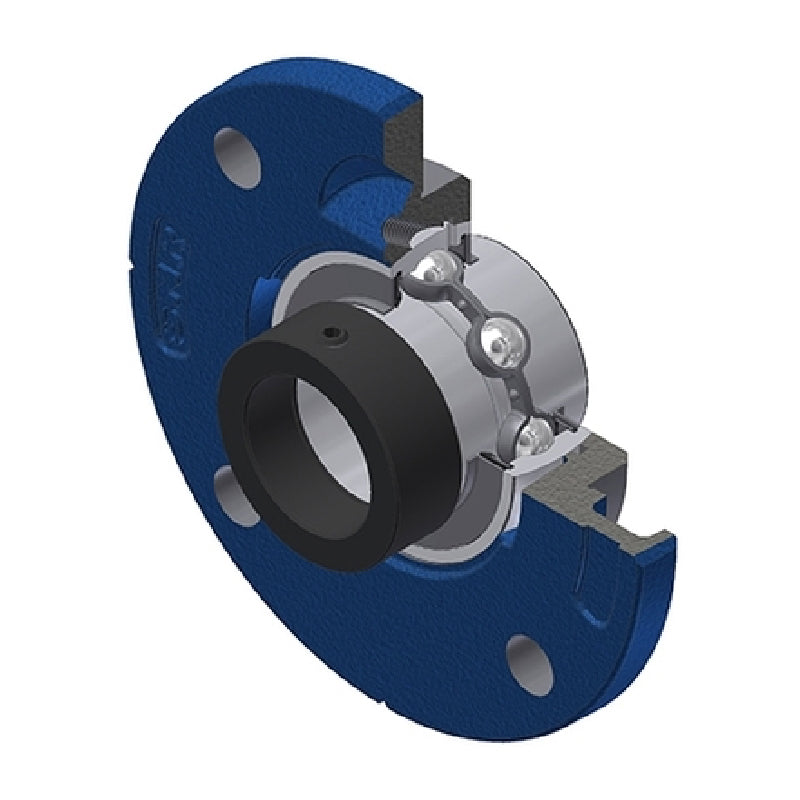

• SNR EXFCE206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFCE206-SNR

SNR EXFCE206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFCE206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
$45.97 ex VAT
$45.97 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.79
4+ $29.06
9+ $28.72
19+ $28.37
49+ $28.02
99+ $27.68
499+ $25.95
999+ $25.60
1999+ $25.26
2999+ $24.91
4999+ $24.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EXFCE
Pitch Circle Diameter:
100mm
Technical
--- Dimensions
Shaft diameter 30mm
A 21mm
A1 9.5mm
A2 28.1mm
A3 2mm
B 36.4mm
B1 48.3mm
d1 44.1mm
e -2mm
H3 80mm
J 100mm
L 125mm
N 11.5mm
S 18.2mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.08 kg
