SKU: EXFCE207-SNR

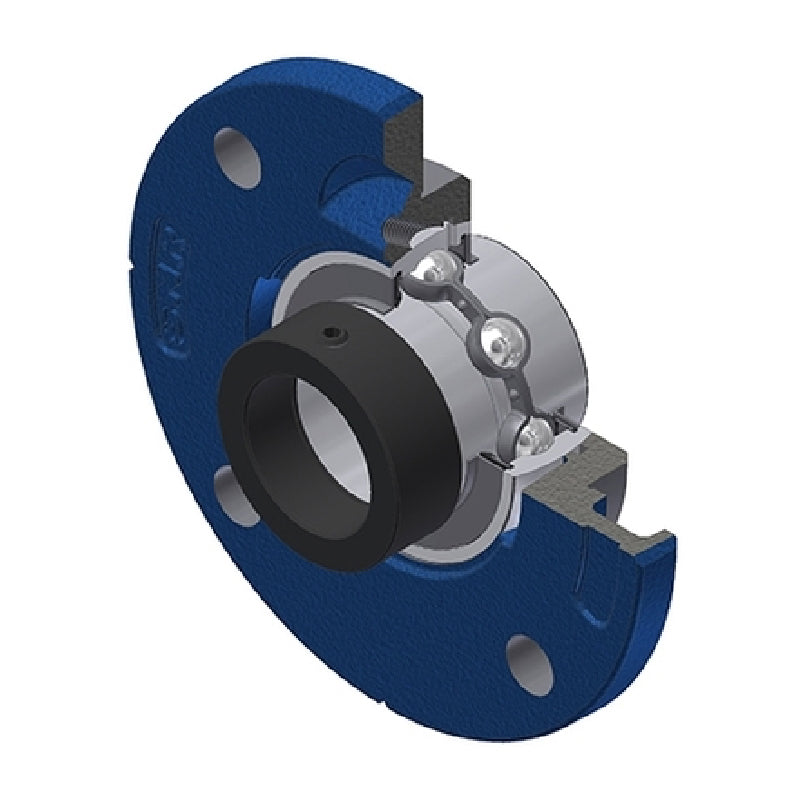

SNR EXFCE207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFCE207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$58.90
ex VAT
Regular price
Sale price
$58.90
ex VAT
In stock
Price Break
3+
$43.88
4+
$42.10
9+
$41.22
19+
$39.89
49+
$39.00
99+
$36.79
499+
$31.02
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- EXFCE
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 21mm |
| A1 | 10mm |
| A2 | 31.3mm |
| A3 | 2mm |
| B | 37.6mm |
| B1 | 51.1mm |
| d1 | 51.1mm |
| e | -1mm |
| H3 | 90mm |
| J | 110mm |
| L | 135mm |
| N | 11.5mm |
| S | 18.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.37 kg |
