SKU: EXFCE210-31-SNR

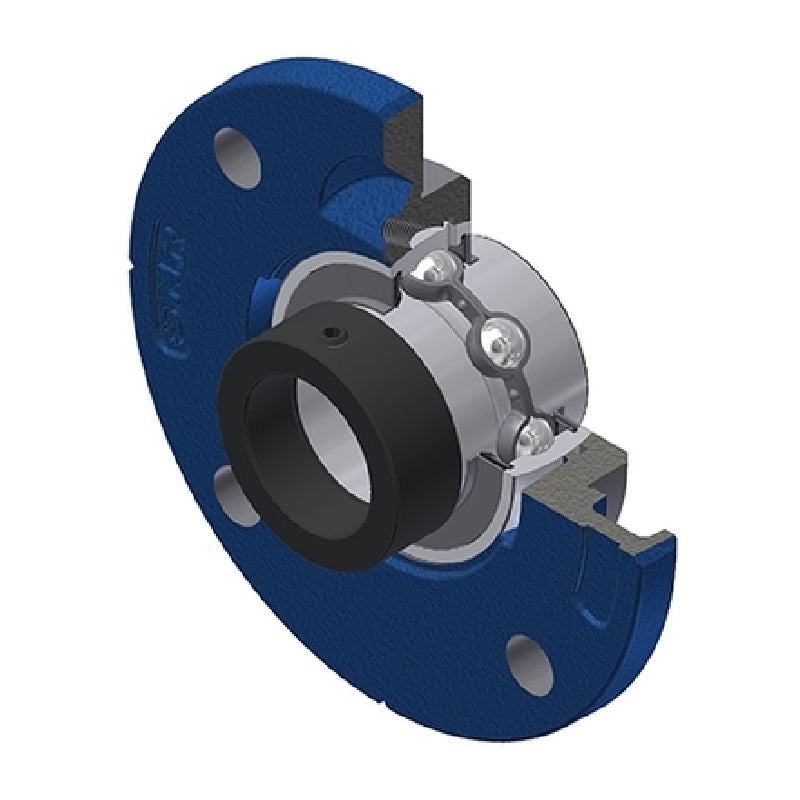

SNR EXFCE210-31 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-15/16 inch Eccentric Collar Insert - Allow 2-3 Days
SNR EXFCE210-31 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-15/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
$88.37
ex VAT
Regular price
Sale price
$88.37
ex VAT
In stock
Price Break
3+
$65.84
4+
$63.18
9+
$61.85
19+
$59.85
49+
$58.52
99+
$55.20
499+
$46.55
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- EXFCE
- Pitch Circle Diameter:
- 135mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-15/16 inch |
| A | 25.5mm |
| A1 | 13mm |
| A2 | 37.1mm |
| A3 | 3mm |
| B | 49.2mm |
| B1 | 62.7mm |
| d1 | 67.2mm |
| e | -1mm |
| H3 | 110mm |
| J | 135mm |
| L | 165mm |
| N | 14mm |
| S | 24.6mm |
| G | M8x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 2.44 kg |
