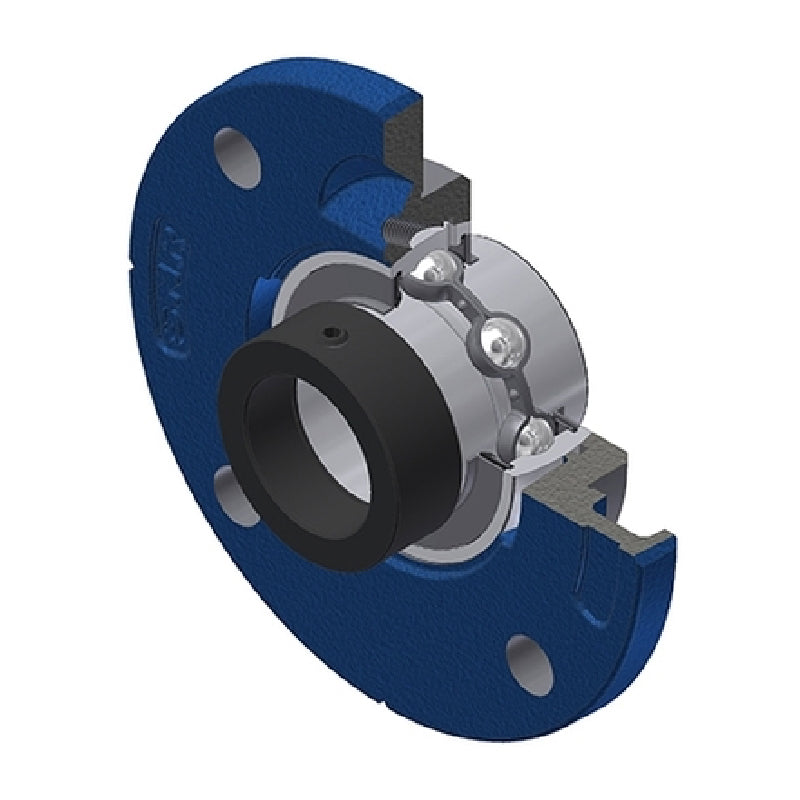

• SNR EXFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFCE211-SNR

SNR EXFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
$86.87 ex VAT
$86.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $58.19
4+ $54.92
9+ $54.27
19+ $53.61
49+ $52.96
99+ $52.31
499+ $49.04
999+ $48.38
1999+ $47.73
2999+ $47.08
4999+ $45.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
EXFCE
Pitch Circle Diameter:
150mm
Technical

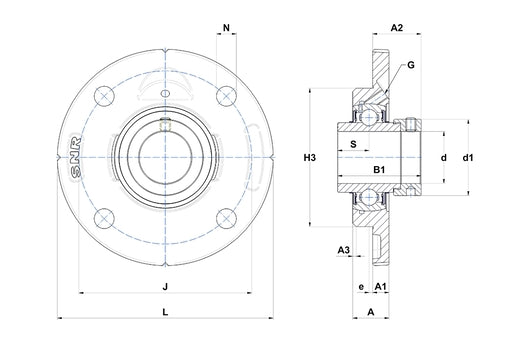

--- Dimensions
Shaft diameter 55mm
A 27.5mm
A1 15mm
A2 43.6mm
A3 3mm
B 55.4mm
B1 71.3mm
d1 74.5mm
H3 125mm
J 150mm
L 185mm
N 18mm
S 27.7mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.4 kg
