SKU: EXFCE212-SNR

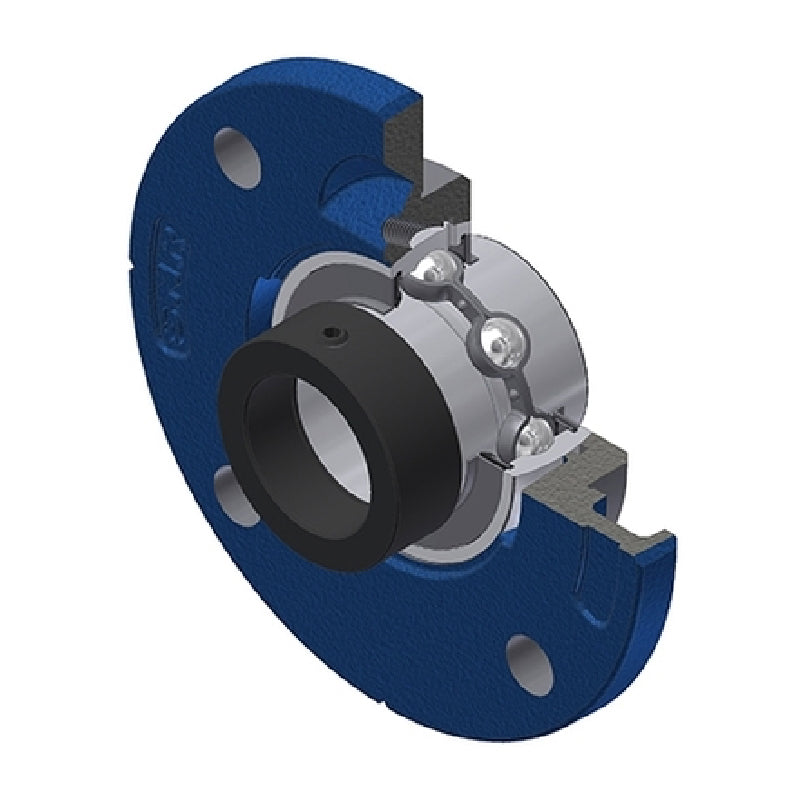

SNR EXFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$108.87
ex VAT
Regular price
Sale price
$108.87
ex VAT
In stock
Price Break
3+
$72.92
4+
$68.83
9+
$68.01
19+
$67.19
49+
$66.37
99+
$65.55
499+
$61.45
999+
$60.63
1999+
$59.81
2999+
$58.99
4999+
$57.36
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- EXFCE
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 30.5mm |
| A1 | 16mm |
| A2 | 45.8mm |
| A3 | 3mm |
| B | 61.8mm |
| B1 | 77.7mm |
| d1 | 82mm |
| e | -1mm |
| H3 | 135mm |
| J | 160mm |
| L | 195mm |
| N | 18mm |
| S | 30.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.2 kg |
