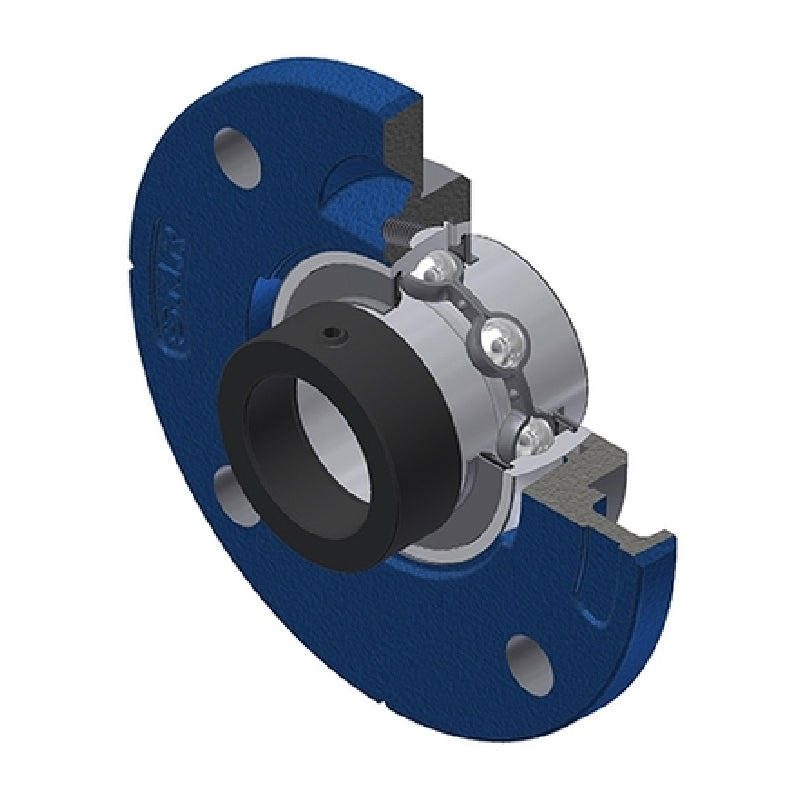

• SNR EXFCE214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFCE214-SNR

SNR EXFCE214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFCE214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Eccentric Collar Insert - Allow 2-3 Days
$160.09 ex VAT
$160.09 ex VAT
Sale Sold out

In stock

Price Break
3+ $107.24
4+ $101.21
9+ $100.01
19+ $98.80
49+ $97.60
99+ $96.39
499+ $90.37
999+ $89.16
1999+ $87.96
2999+ $86.75
4999+ $84.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
EXFCE
Pitch Circle Diameter:
177mm
Technical
--- Dimensions
Shaft diameter 70mm
A 33mm
A1 18mm
A2 51.6mm
A3 6mm
B 68.2mm
B1 85.7mm
d1 96.8mm
H3 150mm
J 177mm
L 215mm
N 18mm
S 34.1mm
G R1/8″
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.58 kg
