SKU: EXFE211-35-SNR

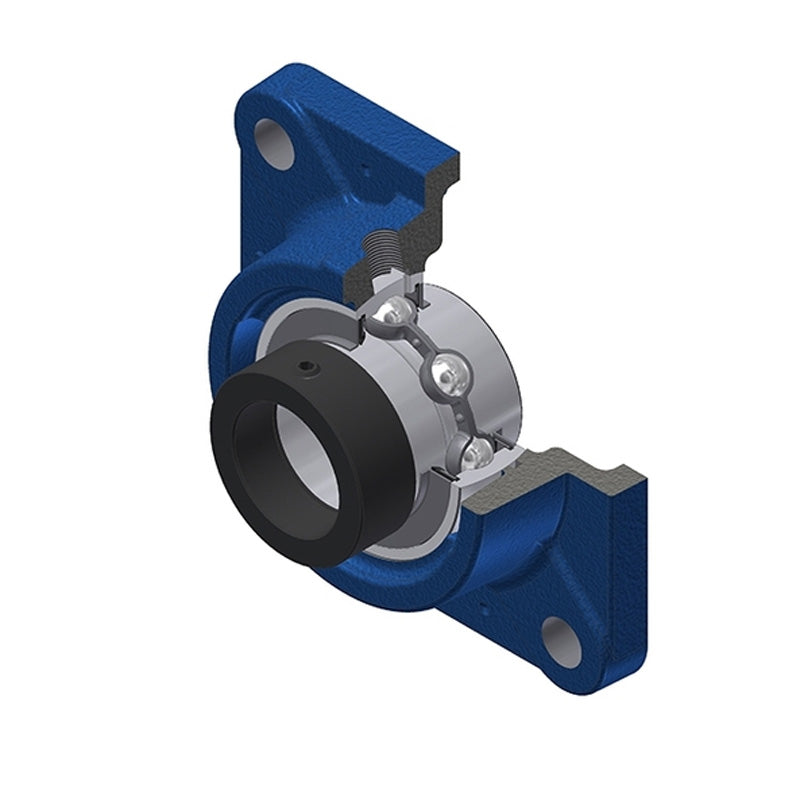

SNR EXFE211-35 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFE211-35 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$117.73
ex VAT
Regular price
Sale price
$117.73
ex VAT
In stock
Price Break
3+
$87.70
4+
$84.16
9+
$82.39
19+
$79.73
49+
$77.96
99+
$73.53
499+
$62.01
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- EXFE
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-3/16 inch |
| A | 48.5mm |
| A1 | 15mm |
| A2 | 74.6mm |
| B | 55.4mm |
| B1 | 71.3mm |
| d1 | 74.5mm |
| e | 31mm |
| J | 130mm |
| L | 162mm |
| N | 18mm |
| S | 27.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.9 kg |
