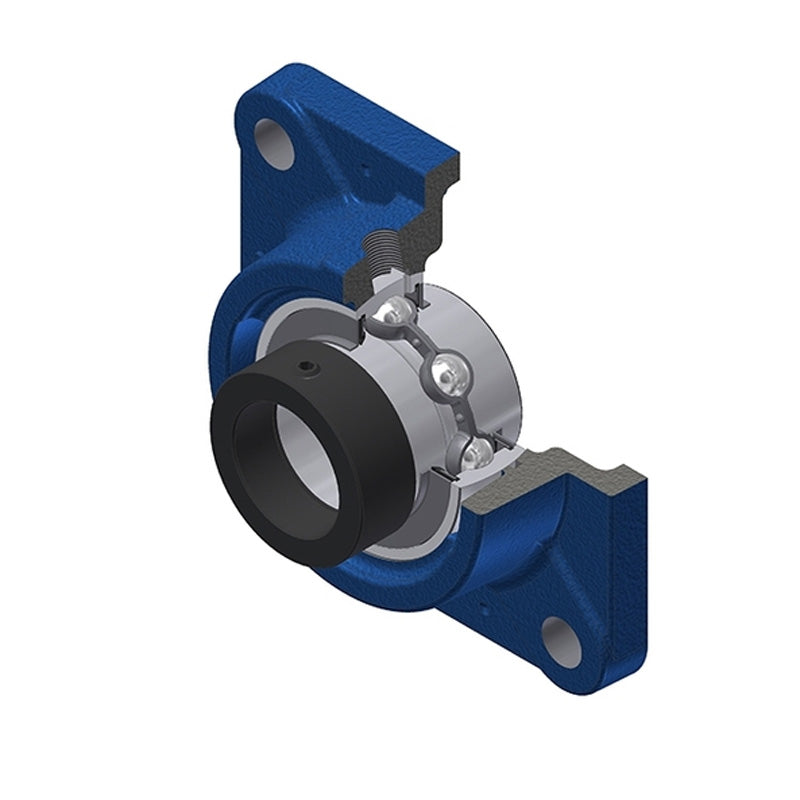

• SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFE212-SNR

SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
$99.25 ex VAT
$99.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $66.49
4+ $62.75
9+ $62.01
19+ $61.26
49+ $60.51
99+ $59.76
499+ $56.03
999+ $55.28
1999+ $54.53
2999+ $53.79
4999+ $52.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
EXFE
Bolt Hole Centres:
143mm
Technical
--- Dimensions
Shaft diameter 60mm
A 53.5mm
A1 16mm
A2 80.8mm
B 61.8mm
B1 77.7mm
d1 82mm
e 34mm
J 143mm
L 175mm
N 18mm
S 30.9mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.2 kg
