SKU: EXFE212N-SNR

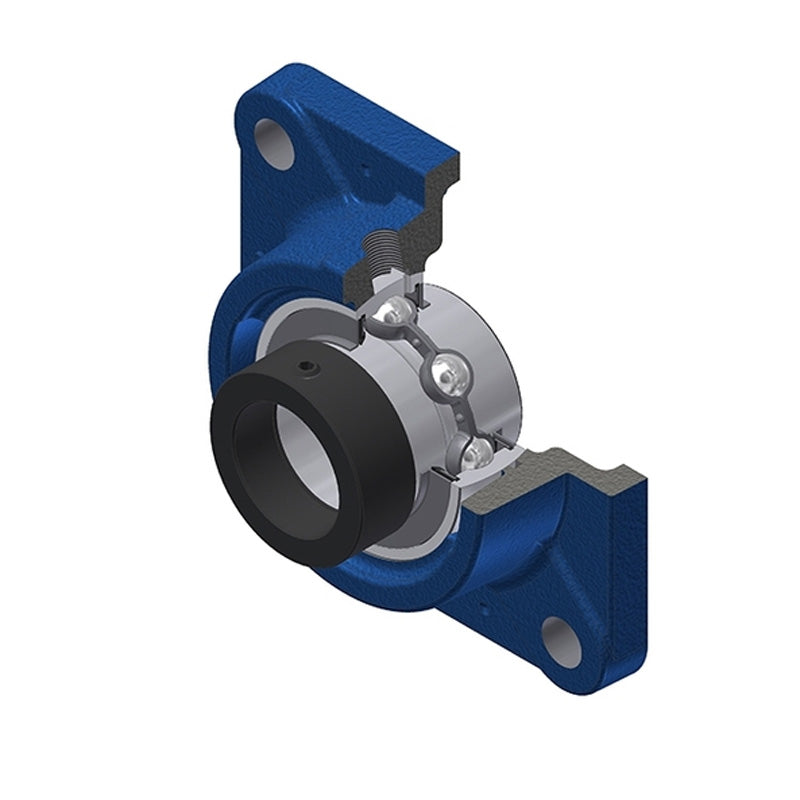

SNR EXFE212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price $176.60 ex VAT
Regular price Sale price $176.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.56
4+ $126.25
9+ $123.59
19+ $119.60
49+ $116.94
99+ $110.30
499+ $93.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 53.5mm
A1 16mm
A2 80.8mm
B 61.8mm
B1 77.7mm
d1 82mm
e 34mm
J 143mm
L 175mm
N 18mm
S 30.9mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.16 kg
