SKU: EXFE213-SNR

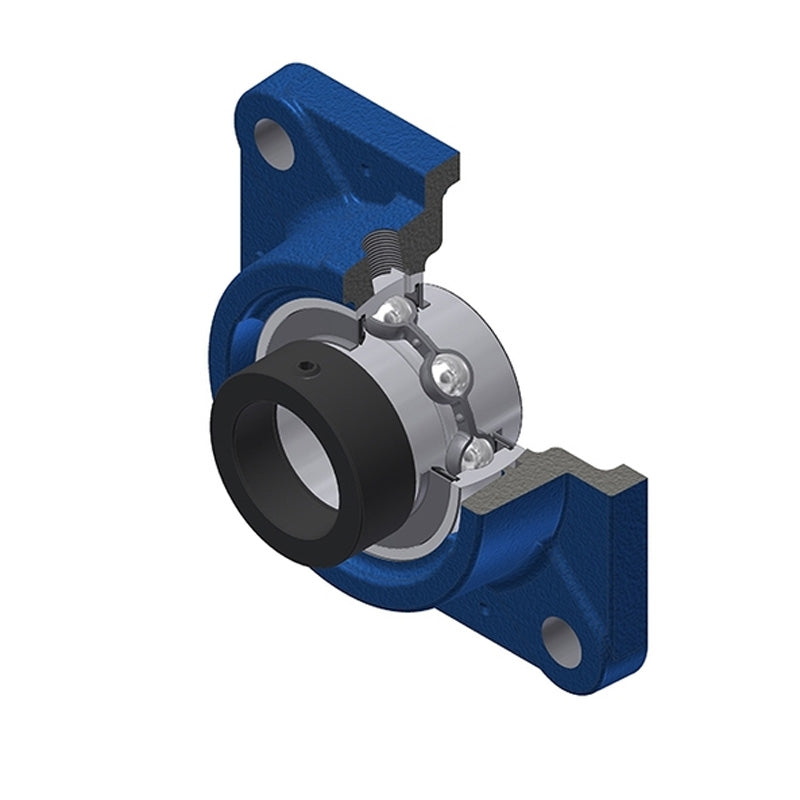

SNR EXFE213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFE213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$176.76
ex VAT
Regular price
Sale price
$176.76
ex VAT
In stock
Price Break
3+
$131.68
4+
$126.36
9+
$123.70
19+
$119.71
49+
$117.05
99+
$110.40
499+
$93.11
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- EXFE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| A | 56mm |
| A1 | 18mm |
| A2 | 89.6mm |
| B | 68.2mm |
| B1 | 85.7mm |
| d1 | 86mm |
| e | 38mm |
| J | 150mm |
| L | 188mm |
| N | 18mm |
| S | 34.1mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.89 kg |
